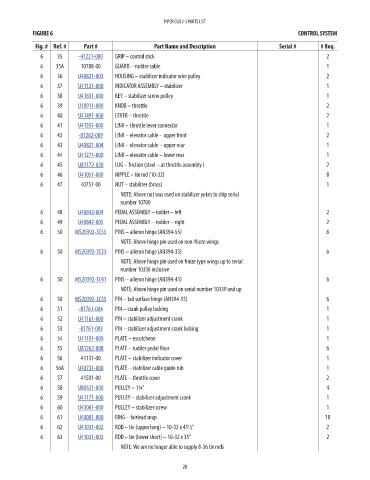

PIPER CUB J-3 PARTS LIST
FIGURE 6 CONTROL SYSTEM

Fig. # Ref. # Part # Part Name and Description Serial # # Req. Price
6 35 -41221-000 GRIP – control stick 2 32.51
6 35A 10788-00 GUARD – rudder cable 1 NM!
6 36 U40821-003 HOUSING – stabilizer indicator wire pulley 2 12.84
6 37 U41121-000 INDICATOR ASSEMBLY – stabilizer 1 34.71
6 38 U41631-000 KEY – stabilizer screw pulley 1 16.1
6 39 U10911-000 KNOB – throttle 2 12.44
6 40 U41491-000 LEVER – throttle 2 76.8
6 41 U41551-000 LINK – throttle lever connector 1 61.33
6 42 -81262-009 LINK – elevator cable – upper front 2 8.52
6 43 U40821-004 LINK – elevator cable – upper rear 1 37.83
6 44 U41271-000 LINK – elevator cable – lower rear 1 22.94
6 45 U81172-020 LUG – friction (steel – at throttle assembly ) 2 8.58
6 46 U41051-000 NIPPLE – tie rod (10-32) 8 30.51
6 47 40751-00 NUT – stabilizer (brass) 1 NM!
NOTE: Above nut was used on stabilizer yokes to ship serial
number 10700
6 48 U40842-004 PEDAL ASSEMBLY – rudder – left 2 158.36
6 49 U40842-005 PEDAL ASSEMBLY – rudder – right 2 169.41
6 50 MS20392-3C55 PINS – aileron hinge (AN394-55) 6 1.08
NOTE: Above hinge pin used on non-frieze wings
6 50 MS20392-3C33 PINS – aileron hinge (AN394-33) 6 1.38
NOTE: Above hinge pin used on frieze type wings up to serial
number 10338 inclusive
6 50 MS20392-3C41 PINS – aileron hinge (AN394-41) 6 1.6
NOTE: Above hinge pin used on serial number 10339 and up
6 50 MS20392-3C55 PIN – tail surface hinge (AN394-55) 6 1.08
6 51 -81761-004 PIN – crank pulley locking 1 12.4
6 52 U41161-000 PIN – stabilizer adjustment crank 1 37
6 53 -81761-003 PIN – stabilizer adjustment crank locking 1 20.19
6 54 U41101-000 PLATE – escutcheon 1 35.56
6 55 U81262-008 PLATE – rudder pedal floor 6 12.3
6 56 41131-00 PLATE – stabilizer indicator cover 1 NM!
6 56A U40731-000 PLATE – stabilizer cable guide rub 1 11.06
6 57 41501-00 PLATE – throttle cover 2 NM!
6 58 U80421-000 PULLEY – 1¾” 4 12.37
6 59 U41171-000 PULLEY – stabilizer adjustment crank 1 77.13
6 60 U43061-000 PULLEY – stabilizer screw 1 120.37
6 61 U40081-000 RING – fairlead snap 18 0.49
6 62 U41031-002 ROD – tie (upper long) – 10-32 x 41½” 2 42.41
6 63 U41031-003 ROD – tie (lower short) – 10-32 x 35” 2 37.31
NOTE: We are no longer able to supply 8-36 tie rods

28
