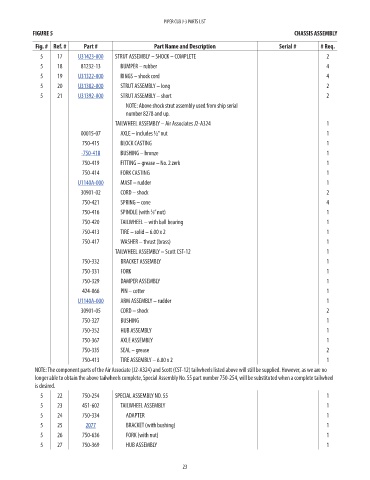

PIPER CUB J-3 PARTS LIST
FIGURE 5 CHASSIS ASSEMBLY

Fig. # Ref. # Part # Part Name and Description Serial # # Req. Price
5 17 U31423-000 STRUT ASSEMBLY – SHOCK – COMPLETE 2 1065.86
5 18 81232-13 BUMPER – rubber 4 NM!
5 19 U31322-000 RINGS – shock cord 4 54.97
5 20 U31382-000 STRUT ASSEMBLY – long 2 374.36
5 21 U31392-000 STRUT ASSEMBLY – short 2 550.04
NOTE: Above shock strut assembly used from ship serial
number 8278 and up.
TAILWHEEL ASSEMBLY – Air Associates J2-A324 1
00015-07 AXLE – includes ½” nut 1 NM!
750-415 BLOCK CASTING 1 NM!
-750-418 BUSHING – bronze 1 14.39
750-419 FITTING – grease – No. 2 zerk 1 NM!
750-414 FORK CASTING 1 NM!
U1140A-000 MAST – rudder 1 218.93
30901-02 CORD – shock 2 NM!
750-421 SPRING – cone 4 NM!
750-416 SPINDLE (with ⁄8” nut) 1 NM!
3
750-420 TAILWHEEL – with ball bearing 1 NM!
750-413 TIRE – solid – 6.00 x 2 1 NM!
750-417 WASHER – thrust (brass) 1 NM!
TAILWHEEL ASSEMBLY – Scott CST-12 1
750-332 BRACKET ASSEMBLY 1 NM!
750-331 FORK 1 NM!
750-329 DAMPER ASSEMBLY 1 NM!
424-066 PIN – cotter 1 NM!
U1140A-000 ARM ASSEMBLY – rudder 1 218.93
30901-05 CORD – shock 2 NM!
750-327 BUSHING 1 NM!
750-352 HUB ASSEMBLY 1 NM!
750-367 AXLE ASSEMBLY 1 NM!
750-335 SEAL – grease 2 NM!
750-413 TIRE ASSEMBLY – 6.00 x 2 1 NM!
NOTE: The component parts of the Air Associate (J2-A324) and Scott (CST-12) tailwheels listed above will still be supplied. However, as we are no
longer able to obtain the above tailwheels complete, Special Assembly No. 55 part number 750-254, will be substituted when a complete tailwheel
is desired.
5 22 750-254 SPECIAL ASSEMBLY NO. 55 1 NM!
5 23 451-602 TAILWHEEL ASSEMBLY 1 NM!
5 24 750-334 ADAPTER 1 NM!
5 25 2077 BRACKET (with bushing) 1 350.48
5 26 750-636 FORK (with nut) 1 NM!
5 27 750-369 HUB ASSEMBLY 1 NM!
