P. 19

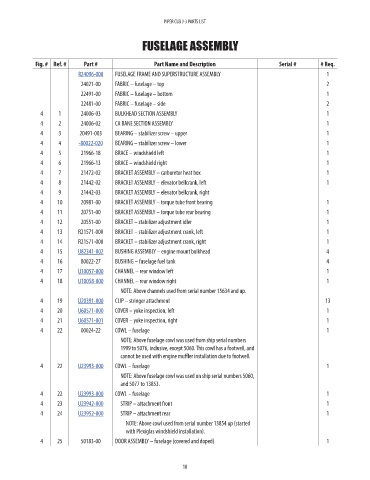

PIPER CUB J-3 PARTS LIST
FUSELAGE ASSEMBLY
Fig. # Ref. # Part # Part Name and Description Serial # # Req. Price
R24096-000 FUSELAGE FRAME AND SUPERSTRUCTURE ASSEMBLY 1 18594.19
24021-00 FABRIC – fuselage – top 2 NM!
22491-00 FABRIC – fuselage – bottom 1 NM!
22481-00 FABRIC – fuselage – side 2 NM!
4 1 24006-03 BULKHEAD SECTION ASSEMBLY 1 NM!
4 2 24006-02 CA BANE SECTION ASSEMBLY 1 NM!
4 3 20491-003 BEARING – stabilizer screw – upper 1 NM!
4 4 -80022-020 BEARING – stabilizer screw – lower 1 12.61
4 5 21966-18 BRACE – windshield left 1 NM!
4 6 21966-13 BRACE – windshield right 1 NM!
4 7 21472-02 BRACKET ASSEMBLY – carburetor heat box 1 NM!
4 8 21442-02 BRACKET ASSEMBLY – elevator bellcrank, left 1 NM!
4 9 21442-03 BRACKET ASSEMBLY – elevator bellcrank, right NM!
4 10 20981-00 BRACKET ASSEMBLY – torque tube front bearing 1 NM!
4 11 20751-00 BRACKET ASSEMBLY – torque tube rear bearing 1 NM!
4 12 20551-00 BRACKET – stabilizer adjustment idler 1 NM!
4 13 R21571-000 BRACKET – stabilizer adjustment crank, left 1 NM!
4 14 R21571-000 BRACKET – stabilizer adjustment crank, right 1 NM!
4 15 U82341-002 BUSHING ASSEMBLY – engine mount bulkhead 4 30.49
4 16 80022-27 BUSHING – fuselage fuel tank 4 NM!
4 17 U10057-000 CHANNEL – rear window left 1 112.64
4 18 U10058-000 CHANNEL – rear window right 1 126.81
NOTE: Above channels used from serial number 15634 and up.
4 19 U20391-000 CLIP – stringer attachment 13 3.48
4 20 U60571-000 COVER – yoke inspection, left 1 26.73
4 21 U60571-001 COVER – yoke inspection, right 1 26.73
4 22 00024-22 COWL – fuselage 1 NM!
NOTE: Above fuselage cowl was used from ship serial numbers
1999 to 5076, inclusive, except 5060. This cowl has a footwell, and
cannot be used with engine muffler installation due to footwell.
4 22 U23993-000 COWL – fuselage 1 1115.61
NOTE: Above fuselage cowl was used on ship serial numbers 5060,
and 5077 to 13853.
4 22 U23993-000 COWL – fuselage 1 1115.61
4 23 U23942-000 STRIP – attachment front 1 76.89
4 24 U23952-000 STRIP – attachment rear 1 76.89
NOTE: Above cowl used from serial number 13854 up (started
with Plexiglas windshield installation).
4 25 50183-00 DOOR ASSEMBLY – fuselage (covered and doped) 1 NM!
18
