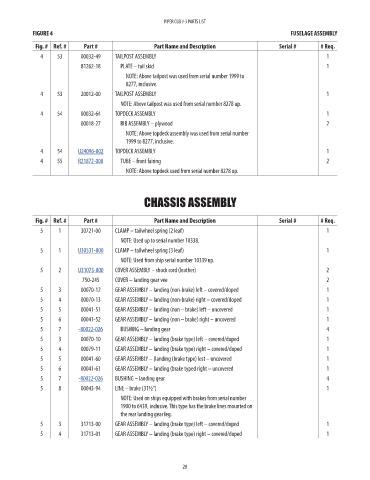

PIPER CUB J-3 PARTS LIST
FIGURE 4 FUSELAGE ASSEMBLY

Fig. # Ref. # Part # Part Name and Description Serial # # Req. Price
4 53 00032-49 TAILPOST ASSEMBLY 1 NM!
81262-18 PLATE – tail skid 1 NM!
NOTE: Above tailpost was used from serial number 1999 to
8277, inclusive.
4 53 20012-00 TAILPOST ASSEMBLY 1 NM!
NOTE: Above tailpost was used from serial number 8278 up.

4 54 00032-64 TOPDECK ASSEMBLY 1 NM!
00018-27 RIB ASSEMBLY – plywood 2 NM!
NOTE: Above topdeck assembly was used from serial number
1999 to 8277, inclusive.
4 54 U24096-002 TOPDECK ASSEMBLY 1 2382.48
4 55 R21872-000 TUBE – front fairing 2 146.76
NOTE: Above topdeck used from serial number 8278 up.

CHASSIS ASSEMBLY

Fig. # Ref. # Part # Part Name and Description Serial # # Req. Price
5 1 30721-00 CLAMP – tailwheel spring (2 leaf) 1 NM!
NOTE: Used up to serial number 10338.
5 1 U30531-000 CLAMP – tailwheel spring (3 leaf) 1 31.59
NOTE: Used from ship serial number 10339 up.
5 2 U31073-000 COVER ASSEMBLY – shock cord (leather) 2 101.43
750-245 COVER – landing gear vee 2 NM!
5 3 00070-12 GEAR ASSEMBLY – landing (non-brake) left – covered/doped 1 NM!
5 4 00070-13 GEAR ASSEMBLY – landing (non-brake) right – covered/doped 1 NM!
5 5 00041-51 GEAR ASSEMBLY – landing (non – brake) left – uncovered 1 NM!
5 6 00041-52 GEAR ASSEMBLY – landing (non – brake) right – uncovered 1 NM!
5 7 -80022-026 BUSHING – landing gear 4 15.44
5 3 00070-10 GEAR ASSEMBLY – landing (brake type) left – covered/doped 1 NM!
5 4 00079-11 GEAR ASSEMBLY – landing (brake type) right – covered/doped 1 NM!
5 5 00041-60 GEAR ASSEMBLY – (landing (brake type) lest – uncovered 1 NM!
5 6 00041-61 GEAR ASSEMBLY – landing (brake typed right – uncovered 1 NM!
5 7 -80022-026 BUSHING – landing gear 4 15.44
5 8 00043-94 LINE – brake (31½”) 1 NM!
NOTE: Used on ships equipped with brakes from serial number
1900 to 6439, inclusive. This type has the brake lines mounted on
the rear landing gear leg.
5 3 31713-00 GEAR ASSEMBLY – landing (brake type) left – covered/doped 1 NM!
5 4 31713-01 GEAR ASSEMBLY – landing (brake type) right – covered/doped 1 NM!

20
