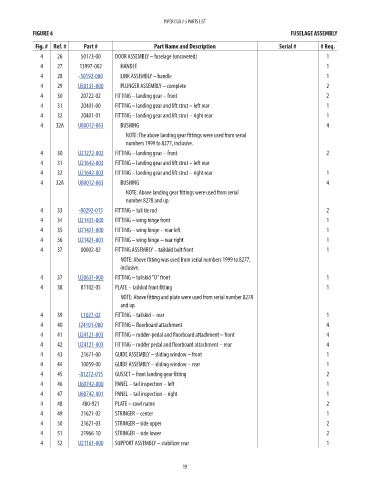

PIPER CUB J-3 PARTS LIST
FIGURE 4 FUSELAGE ASSEMBLY

Fig. # Ref. # Part # Part Name and Description Serial # # Req. Price
4 26 50173-00 DOOR ASSEMBLY – fuselage (uncovered) 1 NM!
4 27 13997-002 HANDLE 1 NM!
4 28 -50192-000 LINK ASSEMBLY – handle 1 83.57
4 29 U50131-000 PLUNGER ASSEMBLY – complete 2 87.38
4 30 20722-02 FITTING – landing gear – front 2 NM!
4 31 20401-00 FITTING – landing gear and lift strut – left rear 1 NM!
4 32 20401-01 FITTING – landing gear and lift strut – right rear 1 NM!
4 32A U80012-063 BUSHING 4 5.41
NOTE: The above landing gear fittings were used from serial
numbers 1999 to 8277, inclusive.
4 30 U21272-002 FITTING – landing gear – front 2 177.6
4 31 U21642-003 FITTING – landing gear and lift strut – left rear 313.37
4 32 U21642-003 FITTING – landing gear and lift strut – right rear 1 313.37
4 32A U80012-063 BUSHING 4 5.41
NOTE: Above landing gear fittings were used from serial
number 8278 and up.
4 33 -80292-015 FITTING – tail tie rod 2 18.52
4 34 U21431-000 FITTING – wing hinge front 1 85.37

4 35 U21421-000 FITTING – wing hinge – rear left 1 48.48
4 36 U21421-001 FITTING – wing hinge – rear right 1 48.48
4 37 00002-82 FITTING ASSEMBLY – tailskid bolt front 1 NM!
NOTE: Above fitting was used from serial numbers 1999 to 8277,
inclusive.
4 37 U20631-000 FITTING – tailskid "U" front 1 43.69
4 38 81102-05 PLATE – tailskid front fitting 1 NM!
NOTE: Above fitting and plate were used from serial number 8278
and up.
4 39 L1027-02 FITTING – tailskid – rear 1 44.57
4 40 J24101-000 FITTING – floorboard attachment 4 5.88
4 41 U24121-003 FITTING – rudder-pedal and floorboard attachment – front 4 8.24
4 42 U24121-003 FITTING – rudder pedal and floorboard attachment – rear 4 8.24
4 43 21671-00 GUIDE ASSEMBLY – sliding window – front 1 NM!
4 44 10059-00 GUIDE ASSEMBLY – sliding window – rear 1 NM!
4 45 -81272-015 GUSSET – front landing gear fitting 2 5.57
4 46 U60742-000 PANEL – tail inspection – left 1 38.43
4 47 U60742-001 PANEL – tail inspection – right 1 38.43
4 48 480-921 PLATE – cowl name 2 NM!
4 49 21621-02 STRINGER – center 1 NM!
4 50 21621-03 STRINGER – side upper 2 NM!
4 51 21966-10 STRINGER – side lower 2 NM!
4 52 U21161-000 SUPPORT ASSEMBLY – stabilizer rear 1 238.34
