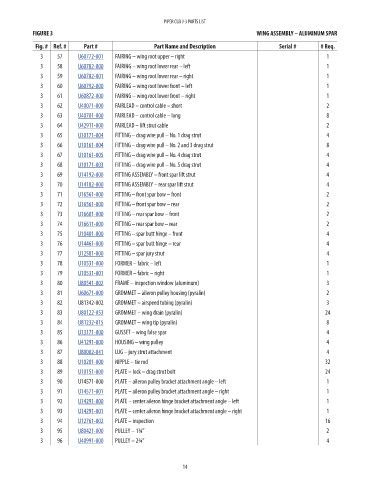

PIPER CUB J-3 PARTS LIST
FIGURE 3 WING ASSEMBLY – ALUMINUM SPAR

Fig. # Ref. # Part # Part Name and Description Serial # # Req. Price
3 57 U60772-001 FAIRING – wing root upper – right 1 67.17
3 58 U60782-000 FAIRING – wing root lower rear – left 1 43.96
3 59 U60782-001 FAIRING – wing root lower rear – right 1 43.96
3 60 U60792-000 FAIRING – wing root lower front – left 1 61.4
3 61 U60872-000 FAIRING – wing root lower front – right 1 59.62
3 62 U40071-000 FAIRLEAD – control cable – short 2 1.32
3 63 U40701-000 FAIRLEAD – control cable – long 8 1.3
3 64 U42911-000 FAIRLEAD – lift strut cable 2 13.29
3 65 U10171-004 FITTING – drag wire pull – No. 1 drag strut 4 7.28
3 66 U10161-004 FITTING – drag wire pull – No. 2 and 3 drag strut 8 15.64
3 67 U10161-005 FITTING – drag wire pull – No. 4 drag strut 4 15.64
3 68 U10171-003 FITTING – drag wire pull – No. 5 drag strut 4 7.28
3 69 U14192-000 FITTING ASSEMBLY – front spar lift strut 4 51.88
3 70 U14182-000 FITTING ASSEMBLY – rear spar lift strut 4 35.44
3 71 U16561-000 FITTING – front spar bow – front 2 17
3 72 U16561-000 FITTING – front spar bow – rear 2 17
3 73 U16601-000 FITTING – rear spar bow – front 2 17.16
3 74 U16611-000 FITTING – rear spar bow – rear 2 11.9
3 75 U10401-000 FITTING – spar butt hinge – front 4 45.84
3 76 U14461-000 FITTING – spar butt hinge – rear 4 47.58
3 77 U12581-000 FITTING – spar jury strut 4 21.22

3 78 U10531-000 FORMER – fabric – left 1 66.76
3 79 U10531-001 FORMER – fabric – right 1 65.96
3 80 U80541-002 FRAME – inspection window (aluminum) 3 14.81
3 81 U60671-000 GROMMET – aileron pulley housing (pyralin) 2 11.62
3 82 U81342-002 GROMMET – airspeed tubing (pyralin) 3 NM!
3 83 U80122-053 GROMMET – wing drain (pyralin) 24 4.09
3 84 U81232-015 GROMMET – wing tip (pyralin) 8 2.2
3 85 U13171-000 GUSSET – wing false spar 4 31.16
3 86 U41291-000 HOUSING – wing pulley 4 55.91
3 87 U80002-041 LUG – jury strut attachment 4 22.3
3 88 U10201-000 NIPPLE – tie rod 32 11.74
3 89 U10151-000 PLATE – lock – drag strut bolt 24 3.08
3 90 U14571-000 PLATE – aileron pulley bracket attachment angle – left 1 NM!
3 91 U14571-001 PLATE – aileron pulley bracket attachment angle – right 1 6.41
3 92 U14291-000 PLATE – center aileron hinge bracket attachment angle – left 1 21.35
3 93 U14291-001 PLATE – center aileron hinge bracket attachment angle – right 1 20.98
3 94 U12761-002 PLATE – inspection 16 46.86
3 95 U80421-000 PULLEY – 1¾” 2 12.37
3 96 U40991-000 PULLEY – 2¾” 4 18.31

14
