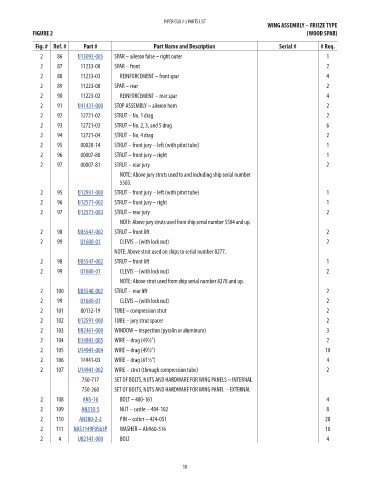

PIPER CUB J-3 PARTS LIST
WING ASSEMBLY – FRIEZE TYPE
FIGURE 2 (WOOD SPAR)

Fig. # Ref. # Part # Part Name and Description Serial # # Req. Price
2 86 U13092-005 SPAR – aileron false – right outer 1 89.41
2 87 11233-00 SPAR – front 2 NM!
2 88 11233-03 REINFORCEMENT – front spar 4 NM!
2 89 11223-00 SPAR – rear 2 NM!
2 90 11223-02 REINFORCEMENT – rear spar 4 NM!
2 91 U41431-000 STOP ASSEMBLY – aileron horn 2 131.75
2 92 12721-02 STRUT – No. 1 drag 2 NM!
2 93 12721-03 STRUT – No. 2, 3, and 5 drag 6 NM!
2 94 12721-04 STRUT – No. 4 drag 2 NM!
2 95 00020-14 STRUT – front jury – left (with pitot tube) 1 NM!
2 96 00007-80 STRUT – front jury – right 1 NM!
2 97 00007-81 STRUT – rear jury 2 NM!
NOTE: Above jury struts used to and including ship serial number X
5503.
2 95 U12931-000 STRUT – front jury – left (with pitot tube) 1 228.43
2 96 U12571-002 STRUT – front jury – right 1 129.54
2 97 U12571-003 STRUT – rear jury 2 129.54
NOTE: Above jury struts used from ship serial number 5504 and up. X
2 98 U85547-002 STRUT – front lift 2 839.53
2 99 U1600-01 CLEVIS – (with lock nut) 2 171.32
NOTE: Above strut used on ships to serial number 8277. X
2 98 U85547-002 STRUT – front lift 1 839.53
2 99 U1600-01 CLEVIS – (with lock nut) 2 171.32
NOTE: Above strut used from ship serial number 8278 and up. X
2 100 U85548-002 STRUT – rear lift 2 685.65
2 99 U1600-01 CLEVIS – (with lock nut) 2 171.32
2 101 80132-19 TUBE – compression strut 2 NM!
2 102 U12591-000 TUBE – jury strut spacer 2 100.2
2 103 U82461-000 WINDOW – inspection (pyralin or aluminum) 3 18.02
2 104 U14941-005 WIRE – drag (49 ⁄8”) 2 53.34
7
2 105 U14941-004 WIRE – drag (49 ⁄8”) 10 39.2
7
2 106 14941-03 WIRE – drag (61½”) 4 NM!
2 107 U14941-002 WIRE – strut (through compression tube) 2 53.34

750-717 SET OF BOLTS, NUTS AND HARDWARE FOR WING PANELS – INTERNAL NM!
750-260 SET OF BOLTS, NUTS AND HARDWARE FOR WING PANEL – EXTERNAL NM!
2 108 AN5-16 BOLT – 400-161 4 1.03
2 109 AN310-5 NUT – castle – 404-102 8 2
2 110 AN380-2-2 PIN – cotter – 424-051 28 0.04
2 111 NAS1149F0563P WASHER – AN960-516 10 0.08
2 4 U82141-000 BOLT 4 26.4

10
