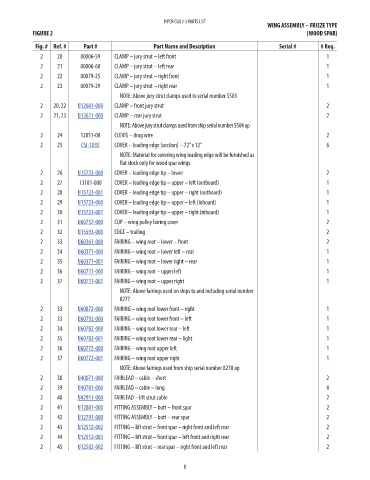

PIPER CUB J-3 PARTS LIST
WING ASSEMBLY – FRIEZE TYPE
FIGURE 2 (WOOD SPAR)

Fig. # Ref. # Part # Part Name and Description Serial # # Req. Price
2 20 00006-59 CLAMP – jury strut – left front 1 NM!
2 21 00006-60 CLAMP – jury strut – left rear 1 NM!
2 22 00079-25 CLAMP – jury strut – right front 1 NM!
2 23 00079-29 CLAMP – jury strut – right rear 1 NM!
NOTE: Above jury strut clamps used to serial number 5503 X
2 20, 22 U12601-000 CLAMP – front jury strut 2 83.4
2 21, 23 U12611-000 CLAMP – rear jury strut 2 45.01
NOTE: Above jury strut clamps used from ship serial number 5504 up X
2 24 12851-00 CLEVIS – drag wire 2 NM!
2 25 CSI-1035 COVER – leading edge (section) – 72” x 12” 6 59.63
NOTE: Material for covering wing leading edge will be furnished as X
flat stock only for wood spar wings
2 26 U15723-000 COVER – leading edge tip – lower 2 252.99
2 27 13181-000 COVER – leading edge tip – upper – left (outboard) 1 NM!
2 28 U15723-001 COVER – leading edge tip – upper – right (outboard) 1 258.71
2 29 U15723-000 COVER – leading edge tip – upper – left (inboard) 1 252.99
2 30 U15723-001 COVER – leading edge tip – upper – right (inboard) 1 258.71
2 31 U60752-000 CUP – wing pulley fairing cover 2 65.77
2 32 U15593-000 EDGE – trailing 2 107.61
2 33 U60361-000 FAIRING – wing root – lower – front 2 26.7
2 34 U60371-000 FAIRING – wing root – lower left – rear 1 65.17
2 35 U60371-001 FAIRING – wing root – lower right – rear 1 65.17
2 36 U60711-000 FAIRING – wing root – upper left 1 92.35
2 37 U60711-001 FAIRING – wing root – upper right 1 110.43
NOTE: Above fairings used on ships to and including serial number X
8277
2 33 U60872-000 FAIRING – wing root lower front – right 1 59.62
2 33 U60792-000 FAIRING – wing root lower front – left 1 61.4
2 34 U60782-000 FAIRING – wing root lower rear – left 1 43.96
2 35 U60782-001 FAIRING – wing root lower rear – light 1 43.96
2 36 U60772-000 FAIRING – wing root upper left 1 67.17
2 37 U60772-001 FAIRING – wing root upper right 1 67.17
NOTE: Above fairings used from ship serial number 8278 up X
2 38 U40071-000 FAIRLEAD – cable – short 2 1.32
2 39 U40701-000 FAIRLEAD – cable – long 8 1.3
2 40 U42911-000 FAIRLEAD – lift strut cable 2 13.29
2 41 U12801-000 FITTING ASSEMBLY – butt – front spar 2 85.19
2 42 U12791-000 FITTING ASSEMBLY – butt – rear spar 2 94.14
2 43 U12512-002 FITTING – lift strut – front spar – right front and left rear 2 123.42
2 44 U12512-003 FITTING – lift strut – front spar – left front and right rear 2 123.42
2 45 U12502-002 FITTING – lift strut – rear spar – right front and left rear 2 123.38

8
