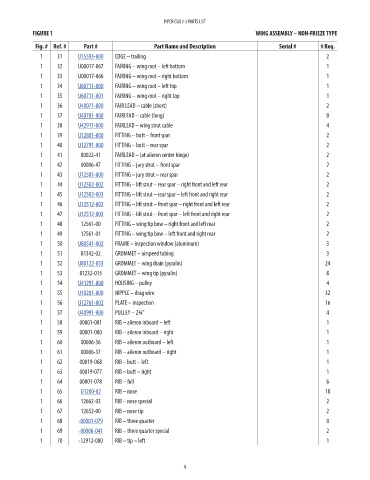

PIPER CUB J-3 PARTS LIST
FIGURE 1 WING ASSEMBLY – NON-FRIEZE TYPE

Fig. # Ref. # Part # Part Name and Description Serial # # Req. Price
1 31 U15593-000 EDGE – trailing 2 107.61
1 32 U00017-067 FAIRING – wing root – left bottom 1 NM!
1 33 U00017-066 FAIRING – wing root – right bottom 1 NM!
1 34 U60711-000 FAIRING – wing root – left top 1 92.35
1 35 U60711-001 FAIRING – wing root – right top 1 110.43
1 36 U40071-000 FAIR LEAD – cable (short) 2 1.32
1 37 U40701-000 FAIRLEAD – cable (long) 8 1.3
1 38 U42911-000 FAIRLEAD – wing strut cable 4 13.29
1 39 U12801-000 FITTING – butt – front spar 2 85.19
1 40 U12791-000 FITTING – butt – rear spar 2 94.14
1 41 80022-41 FAIRLEAD – (at aileron center hinge) 2 NM!
1 42 00006-47 FITTING – jury strut – front spar 2 NM!
1 43 U12581-000 FITTING – jury strut – rear spar 2 21.22
1 44 U12502-002 FITTING – lift strut – rear spar – right front and left rear 2 123.38
1 45 U12502-003 FITTING – lift strut – rear spar – left front and right rear 2 123.38
1 46 U12512-002 FITTING – lift strut – front spar – right front and left rear 2 123.42
1 47 U12512-003 FITTING – lift strut – front spar – left front and right rear 2 123.42
1 48 12561-00 FITTING – wing tip bow – right front and left rear 2 NM!
1 49 12561-01 FITTING – wing tip bow – left front and right rear 2 NM!
1 50 U80541-002 FRAME – inspection window (aluminum) 3 14.81
1 51 81342-02 GROMMET – airspeed tubing 3 NM!

1 52 U80122-053 GROMMET – wing drain (pyralin) 24 4.09
1 53 81232-015 GROMMET – wing tip (pyralin) 8 NM!
1 54 U41291-000 HOUSING – pulley 4 55.91
1 55 U10201-000 NIPPLE – drag wire 32 11.74
1 56 U12761-002 PLATE – inspection 16 46.86
1 57 U40991-000 PULLEY – 2¾” 4 18.31
1 58 00001-081 RIB – aileron inboard – left 1 NM!
1 59 00001-080 RIB – aileron inboard – right 1 NM!
1 60 00006-36 RIB – aileron outboard – left 1 NM!
1 61 00006-37 RIB – aileron outboard – right 1 NM!
1 62 00019-068 RIB – butt – left 1 NM!
1 63 00019-077 RIB – butt – right 1 NM!
1 64 00001-078 RIB – full 6 NM!
1 65 U1200-02 RIB – nose 18 29.72
1 66 12662-03 RIB – nose special 2 NM!
1 67 12652-00 RIB – nose tip 2 NM!
1 68 -00001-079 RIB – three quarter 8 388.12
1 69 -00006-041 RIB – three quarter special 2 388.12
1 70 -12912-000 RIB – tip – left 1 NM!

4
