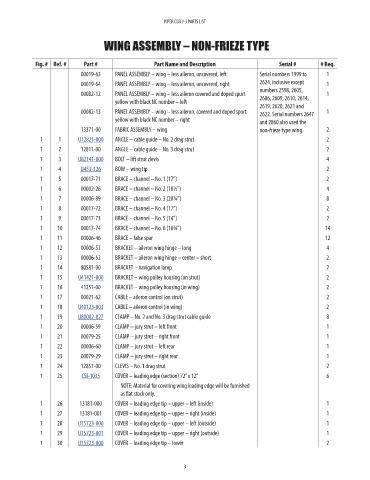

PIPER CUB J-3 PARTS LIST

WING ASSEMBLY – NON-FRIEZE TYPE

Fig. # Ref. # Part # Part Name and Description Serial # # Req. Price
00019-63 PANEL ASSEMBLY – wing – less aileron, uncovered, left Serial numbers 1999 to 1 NM!
00019-64 PANEL ASSEMBLY – wing – less aileron, uncovered, right 2624, inclusive except 1 NM!
00082-12 PANEL ASSEMBLY – wing – less aileron covered and doped spurt numbers 2598, 2605, 1 NM!
2606, 2609, 2610, 2614,
yellow with black NC number – left 2619, 2620, 2621 and
00082-13 PANEL ASSEMBLY – wing – less aileron, covered and doped sport 2622. Serial numbers 2647 1 NM!
yellow with black NC number – right and 2860 also used the
13371-00 FABRIC ASSEMBLY – wing non-frieze type wing. 2 NM!
1 1 U12821-000 ANGLE – cable guide – No. 2 drag strut 2 20.49
1 2 12811-00 ANGLE – cable guide – No. 3 drag strut 2 NM!
1 3 U82141-000 BOLT – lift strut clevis 4 26.4
1 4 U453-126 BOW – wing tip 2 46.14
1 5 00017-71 BRACE – channel – No. 1 (17”) 2 NM!
1 6 00002-26 BRACE – channel – No. 2 (18½”) 4 NM!
1 7 00006-89 BRACE – channel – No. 3 (20¼”) 8 NM!
1 8 00017-72 BRACE – channel – No. 4 (17”) 2 NM!
1 9 00017-73 BRACE – channel – No. 5 (14”) 2 NM!
1 10 00017-74 BRACE – channel – No. 6 (10¾”) 14 NM!
1 11 00006-46 BRACE – false spar 12 NM!
1 12 00006-51 BRACKET – aileron wing hinge – long 4 NM!
1 13 00006-52 BRACKET – aileron wing hinge – center – short 2 NM!
1 14 80581-00 BRACKET – navigation lamp 2 NM!
1 15 U41421-000 BRACKET – wing pulley housing (on strut) 2 23.35
1 16 41251-00 BRACKET – wing pulley housing (in wing) 2 NM!
1 17 00021-62 CABLE – aileron control (on strut) 2 NM!
1 18 U40123-003 CABLE – aileron control (in wing) 2 138.52
1 19 U80002-027 CLAMP – No. 2 and No. 3 drag strut cable guide 8 23.38
1 20 00006-59 CLAMP – jury strut – left front 1 NM!
1 21 00079-25 CLAMP – jury strut – right front 1 NM!

1 22 00006-60 CLAMP – jury strut – left rear 1 NM!
1 23 00079-29 CLAMP – jury strut – right rear 1 NM!
1 24 12851-00 CLEVIS – No. 1 drag strut 2 NM!
1 25 CSI-1035 COVER – leading edge (section) 72” x 12” 6 59.63
NOTE: Material for covering wing leading edge will be furnished
as flat stock only.
1 26 13181-000 COVER – leading edge tip – upper – left (inside) 1 NM!
1 27 13181-001 COVER – leading edge tip – upper – right (inside) 1 NM!
1 28 U15723-000 COVER – leading edge tip – upper – left (outside) 1 252.99
1 29 U15723-001 COVER – leading edge tip – upper – right (outside) 1 258.71
1 30 U15723-000 COVER – leading edge tip – lower 2 252.99

3
