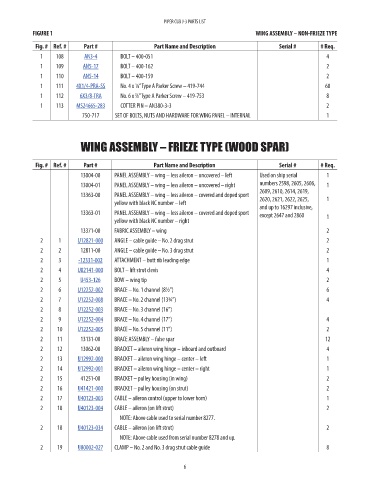

PIPER CUB J-3 PARTS LIST
FIGURE 1 WING ASSEMBLY – NON-FRIEZE TYPE

Fig. # Ref. # Part # Part Name and Description Serial # # Req. Price
1 108 AN3-4 BOLT – 400-051 4 0.6
1 109 AN5-17 BOLT – 400-162 2 1.64
1 110 AN5-14 BOLT – 400-159 2 0.9
1 111 4X1/4-PRA-SS No. 4 x ¼” Type A Parker Screw – 419-744 60 0.02
1 112 6X3/8-TRA No. 6 x ⁄8” Type A Parker Screw – 419-753 8 0.06
3
1 113 MS24665-283 COTTER PIN – AN380-3-3 2 0.04
750-717 SET OF BOLTS, NUTS AND HARDWARE FOR WING PANEL – INTERNAL 1 NM!

WING ASSEMBLY – FRIEZE TYPE (WOOD SPAR)

Fig. # Ref. # Part # Part Name and Description Serial # # Req. Price
13004-00 PANEL ASSEMBLY – wing – less aileron – uncovered – left Used on ship serial 1 NM!
13004-01 PANEL ASSEMBLY – wing – less aileron – uncovered – right numbers 2598, 2605, 2606, 1 NM!
13363-00 PANEL ASSEMBLY – wing – less aileron – covered and doped sport 2609, 2610, 2614, 2619, NM!
yellow with black NC number – left 2620, 2621, 2622, 2625, 1
and up to 16297 inclusive,
13363-01 PANEL ASSEMBLY – wing – less aileron – covered and doped sport except 2647 and 2860 1 NM!
yellow with black NC number – right
13371-00 FABRIC ASSEMBLY – wing 2 NM!
2 1 U12821-000 ANGLE – cable guide – No. 2 drag strut 2 20.49
2 2 12811-00 ANGLE – cable guide – No. 3 drag strut 2 NM!
2 3 -12331-002 ATTACHMENT – butt rib leading edge 1 12.91
2 4 U82141-000 BOLT – lift strut clevis 4 26.4
2 5 U453-126 BOW – wing tip 2 46.14
2 6 U12252-002 BRACE – No. 1 channel (8½”) 6 13
2 7 U12252-008 BRACE – No. 2 channel (13¾”) 4 15.29
2 8 U12252-003 BRACE – No. 3 channel (16”) 16.86
2 9 U12252-004 BRACE – No. 4 channel (17”) 4 13
2 10 U12252-005 BRACE – No. 5 channel (11”) 2 13
2 11 13131-00 BRACE ASSEMBLY – false spar 12 NM!
2 12 13062-00 BRACKET – aileron wing hinge – inboard and outboard 4 NM!
2 13 U12992-000 BRACKET – aileron wing hinge – center – left 1 690.86
2 14 U12992-001 BRACKET – aileron wing hinge – center – right 1 690.86
2 15 41251-00 BRACKET – pulley housing (in wing) 2 NM!
2 16 U41421-000 BRACKET – pulley housing (on strut) 2 23.35
2 17 U40123-003 CABLE – aileron control (upper to lower horn) 1 138.52
2 18 U40123-004 CABLE – aileron (on lift strut) 2 187.71
NOTE: Above cable used to serial number 8277. X
2 18 U40123-034 CABLE – aileron (on lift strut) 2 177.82
NOTE: Above cable used from serial number 8278 and up. X
2 19 U80002-027 CLAMP – No. 2 and No. 3 drag strut cable guide 8 23.38
