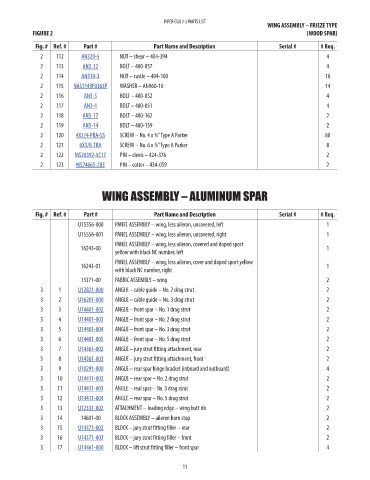

PIPER CUB J-3 PARTS LIST
WING ASSEMBLY – FRIEZE TYPE
FIGURE 2 (WOOD SPAR)

Fig. # Ref. # Part # Part Name and Description Serial # # Req. Price
2 112 AN320-5 NUT – shear – 404-394 4 1
2 113 AN3-12 BOLT – 400-057 4 1.06
2 114 AN310-3 NUT – castle – 404-100 16 1.5
2 115 NAS1149F0363P WASHER – AN960-10 14 0.04
2 116 AN3-5 BOLT – 400-052 4 0.6
2 117 AN3-4 BOLT – 400-051 4 0.6
2 118 AN5-17 BOLT – 400-162 2 1.64
2 119 AN5-14 BOLT – 400-159 2 0.9
2 120 4X1/4-PRA-SS SCREW – No. 4 x ¼” Type A Parker 60 0.02
3
2 121 6X3/8-TRA SCREW – No. 6 x ⁄8” Type A Parker 8 0.06
2 122 MS20392-5C17 PIN – clevis – 424-376 2 1.7
2 123 MS24665-283 PIN – cotter – 434-059 2 0.04

WING ASSEMBLY – ALUMINUM SPAR

Fig. # Ref. # Part # Part Name and Description Serial # # Req. Price

U15556-000 PANEL ASSEMBLY – wing, less aileron, uncovered, left 1 NM!
U15556-001 PANEL ASSEMBLY – wing, less aileron, uncovered, right 1 NM!
PANEL ASSEMBLY – wing, less aileron, covered and doped sport NM!
16243-00 1
yellow with black NC number, left
PANEL ASSEMBLY – wing, less aileron, cover and doped sport yellow NM!
16243-01 1
with black NC number, right
13371-00 FABRIC ASSEMBLY – wing 2 NM!
3 1 U12821-000 ANGLE – cable guide – No. 2 drag strut 2 20.49
3 2 U16201-000 ANGLE – cable guide – No. 3 drag strut 2 20.49
3 3 U14401-002 ANGLE – front spar – No. 1 drag strut 2 14.77
3 4 U14401-003 ANGLE – front spar – No. 2 drag strut 2 13.8
3 5 U14401-004 ANGLE – front spar – No. 3 drag strut 2 13.14
3 6 U14401-005 ANGLE – front spar – No. 5 drag strut 2 18.48
3 7 U14361-002 ANGLE – jury strut fitting attachment, rear 2 15.9
3 8 U14361-003 ANGLE – jury strut fitting attachment, front 2 30.82
3 9 U10291-000 ANGLE – rear spar hinge bracket (inboard and outboard) 4 23.85
3 10 U14411-002 ANGLE – rear spar – No. 2 drag strut 2 13.65
3 11 U14411-003 ANGLE – real spar – No. 3 drag strut 2 17.29
3 12 U14411-004 ANGLE – rear spar – No. 5 drag strut 2 12.74
3 13 U12331-002 ATTACHMENT – leading edge – wing butt rib 2 5.58
3 14 14601-00 BLOCK ASSEMBLY – aileron horn stop 2 NM!
3 15 U14371-002 BLOCK – jury strut fitting filler – rear 2 20.19
3 16 U14371-003 BLOCK – jury strut fitting filler – front 2 25.86
3 17 U14461-000 BLOCK – lift strut fitting filler – front spar 4 47.58

11
