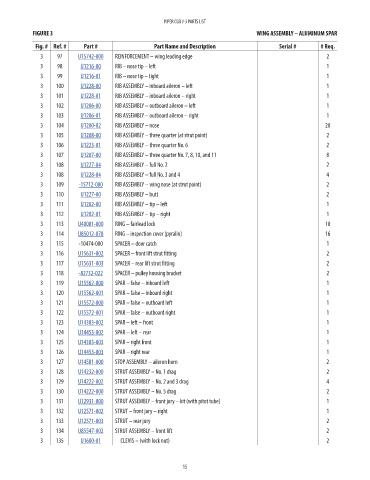

PIPER CUB J-3 PARTS LIST
FIGURE 3 WING ASSEMBLY – ALUMINUM SPAR

Fig. # Ref. # Part # Part Name and Description Serial # # Req. Price
3 97 U15742-000 REINFORCEMENT – wing leading edge 2 45.69
3 98 U1216-00 RIB – nose tip – left 1 31.99
3 99 U1216-01 RIB – nose tip – tight 1 47.68
3 100 U1228-00 RIB ASSEMBLY – inboard aileron – left 1 141.64
3 101 U1228-01 RIB ASSEMBLY – inboard aileron – right 1 151.23
3 102 U1206-00 RIB ASSEMBLY – outboard aileron – left 1 185.34
3 103 U1206-01 RIB ASSEMBLY – outboard aileron – right 1 199.97
3 104 U1200-02 RIB ASSEMBLY – nose 20 29.72
3 105 U1208-00 RIB ASSEMBLY – three quarter (at strut point) 2 204.68
3 106 U1223-01 RIB ASSEMBLY – three quarter No. 6 2 169.56
3 107 U1207-00 RIB ASSEMBLY – three quarter No. 7, 8, 10, and 11 8 150.64
3 108 U1227-04 RIB ASSEMBLY – full No. 2 2 151.76
3 108 U1228-04 RIB ASSEMBLY – full No. 3 and 4 4 188.87
3 109 -15712-000 RIB ASSEMBLY – wing nose (at strut point) 2 46.47
3 110 U1227-00 RIB ASSEMBLY – butt 2 181.3
3 111 U1202-00 RIB ASSEMBLY – tip – left 1 177.8
3 112 U1202-01 RIB ASSEMBLY – tip – right 1 178.74
3 113 U40081-000 RING – fairlead lock 10 0.49
3 114 U85012-078 RING – inspection cover (pyralin) 16 8.99
3 115 -10474-000 SPACER – door catch 1 NM!
3 116 U15631-002 SPACER – front lift strut fitting 2 18.15

3 117 U15631-003 SPACER – rear lift strut fitting 2 18.15
3 118 -82732-022 SPACER – pulley housing bracket 2 19.87
3 119 U15562-000 SPAR – false – inboard left 1 62.7
3 120 U15562-001 SPAR – false – inboard right 1 68.91
3 121 U15572-000 SPAR – false – outboard left 1 65.98
3 122 U15572-001 SPAR – false – outboard right 1 57.54
3 123 U14383-002 SPAR – left – front 1 448.84
3 124 U14453-002 SPAR – left – rear 1 379.53
3 125 U14383-003 SPAR – right front 1 448.84
3 126 U14453-003 SPAR – right rear 1 379.53
3 127 U14581-000 STOP ASSEMBLY – aileron horn 2 229.68
3 128 U14232-000 STRUT ASSEMBLY – No. 1 drag 2 113.14
3 129 U14222-002 STRUT ASSEMBLY – No. 2 and 3 drag 4 155.77
3 130 U14222-000 STRUT ASSEMBLY – No. 5 drag 2 154.61
3 131 U12931-000 STRUT ASSEMBLY – front jury – kit (with pitot tube) 1 228.43
3 132 U12571-002 STRUT – front jury – right 1 129.54
3 133 U12571-003 STRUT – rear jury 2 129.54
3 134 U85547-002 STRUT ASSEMBLY – front lift 2 839.53
3 135 U1600-01 CLEVIS – (with lock nut) 2 171.32

15
