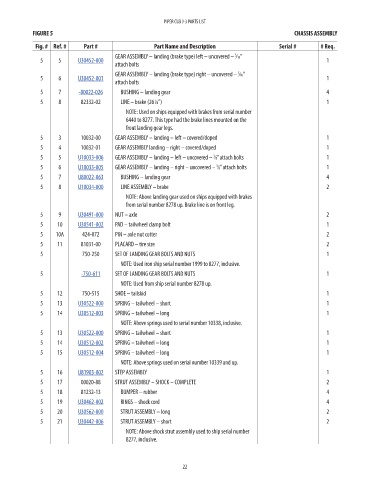

PIPER CUB J-3 PARTS LIST
FIGURE 5 CHASSIS ASSEMBLY

Fig. # Ref. # Part # Part Name and Description Serial # # Req. Price
GEAR ASSEMBLY – landing (brake type) left – uncovered – ⁄16”
5
5 5 U30452-000 1 1063.44
attach bolts
GEAR ASSEMBLY – landing (brake type) right – uncovered – ⁄16”
5
5 6 U30452-001 1 1063.44
attach bolts
5 7 -80022-026 BUSHING – landing gear 4 15.44
5 8 82332-02 LINE – brake (26¼”) 1 NM!
NOTE: Used on ships equipped with brakes from serial number
6440 to 8277. This type had the brake lines mounted on the
front landing gear legs.
5 3 10032-00 GEAR ASSEMBLY – landing – left – covered/doped 1 NM!
5 4 10032-01 GEAR ASSEMBLY landing – right – covered/doped 1 NM!
5 5 U10033-006 GEAR ASSEMBLY – landing – left – uncovered – ⁄8” attach bolts 1 917.09
3
5 6 U10033-005 GEAR ASSEMBLY – landing – right – uncovered – ⁄8” attach bolts 1 877.71
3
5 7 U80022-063 BUSHING – landing gear 4 13.19
5 8 U10034-000 LINE ASSEMBLY – brake 2 69.42
NOTE: Above landing gear used on ships equipped with brakes
from serial number 8278 up. Brake line is on front leg.
5 9 U30491-000 NUT – axle 2 77.13

5 10 U30541-002 PAD – tailwheel clamp bolt 1 11.38
5 10A 424-072 PIN – axle nut cotter 2 NM!
5 11 81031-00 PLACARD – tire size 2 NM!
5 750-250 SET OF LANDING GEAR BOLTS AND NUTS 1 NM!
NOTE: Used iron ship serial number 1999 to 8277, inclusive.
5 -750-611 SET OF LANDING GEAR BOLTS AND NUTS 1 215.71
NOTE: Used from ship serial number 8278 up.
5 12 750-515 SHOE – tailskid 1 NM!
5 13 U30522-000 SPRING – tailwheel – short 1 51.07
5 14 U30512-003 SPRING – tailwheel – long 1 63.33
NOTE: Above springs used to serial number 10338, inclusive.
5 13 U30522-000 SPRING – tailwheel – short 1 51.07
5 14 U30512-002 SPRING – tailwheel – long 1 71.23
5 15 U30512-004 SPRING – tailwheel – long 1 63.68
NOTE: Above springs used on serial number 10339 and up.
5 16 U81903-002 STEP ASSEMBLY 1 284.87
5 17 00020-88 STRUT ASSEMBLY – SHOCK – COMPLETE 2 NM!
5 18 81232-13 BUMPER – rubber 4 NM!
5 19 U30462-002 RINGS – shock cord 4 46.44
5 20 U30562-000 STRUT ASSEMBLY – long 2 263.31
5 21 U30442-006 STRUT ASSEMBLY – short 2 407.87
NOTE: Above shock strut assembly used to ship serial number
8277, inclusive.
