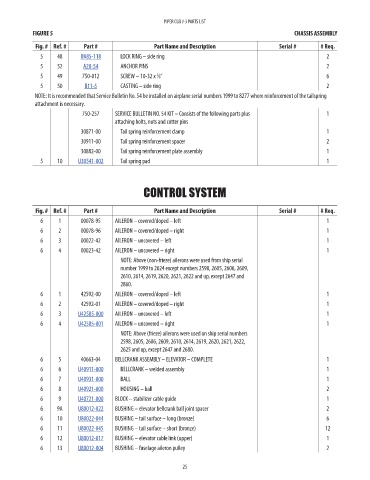

PIPER CUB J-3 PARTS LIST
FIGURE 5 CHASSIS ASSEMBLY

Fig. # Ref. # Part # Part Name and Description Serial # # Req. Price
5 48 UA85-118 LOCK RING – side ring 2 22
5 52 A20-54 ANCHOR PINS 2 21.55
3
5 49 750-012 SCREW – 10-32 x ⁄8” 6 NM!
5 50 B11-5 CASTING – side ring 2 60.23
NOTE: It is recommended that Service Bulletin No. 54 be installed on airplane serial numbers 1999 to 8277 where reinforcement of the tailspring
attachment is necessary.

750-257 SERVICE BULLETIN NO. 54 KIT – Consists of the following parts plus 1 NM!
attaching bolts, nuts and cotter pins
30871-00 Tail spring reinforcement clamp 1 NM!
30911-00 Tail spring reinforcement spacer 2 NM!
30882-00 Tail spring reinforcement plate assembly 1 NM!
5 10 U30541-002 Tail spring pad 1 11.38

CONTROL SYSTEM

Fig. # Ref. # Part # Part Name and Description Serial # # Req. Price
6 1 00078-95 AILERON – covered/doped – left 1 NM!
6 2 00078-96 AILERON – covered/doped – right 1 NM!
6 3 00022-42 AILERON – uncovered – left 1 NM!
6 4 00023-42 AILERON – uncovered – right 1 NM!
NOTE: Above (non-frieze) ailerons were used from ship serial
number 1999 to 2624 except numbers 2598, 2605, 2606, 2609,
2610, 2614, 2619, 2620, 2621, 2622 and up, except 2647 and
2860.
6 1 42592-00 AILERON – covered/doped – left 1 NM!
6 2 42592-01 AILERON – covered/doped – right 1 NM!
6 3 U42585-000 AILERON – uncovered – left 1 1548.46
6 4 U42585-001 AILERON – uncovered – right 1 1548.46
NOTE: Above (frieze) ailerons were used on ship serial numbers
2598, 2605, 2606, 2609, 2610, 2614, 2619, 2620, 2621, 2622,
2625 and up, except 2647 and 2680.
6 5 40663-04 BELLCRANK ASSEMBLY – ELEVATOR – COMPLETE 1 NM!
6 6 U40911-000 BELLCRANK – welded assembly 1 143.18
6 7 U40931-000 BALL 1 89.64
6 8 U40921-000 HOUSING – ball 2 63.77
6 9 U40721-000 BLOCK – stabilizer cable guide 1 44.83
6 9A U80012-022 BUSHING – elevator bellcrank ball joint spacer 2 11.94

6 10 U80022-044 BUSHING – tail surface – long (bronze) 6 1.26
6 11 U80022-045 BUSHING – tail surface – short (bronze) 12 1.6
6 12 U80012-017 BUSHING – elevator cable link (upper) 1 12.71
6 13 U80012-004 BUSHING – fuselage aileron pulley 2 7.45

25
