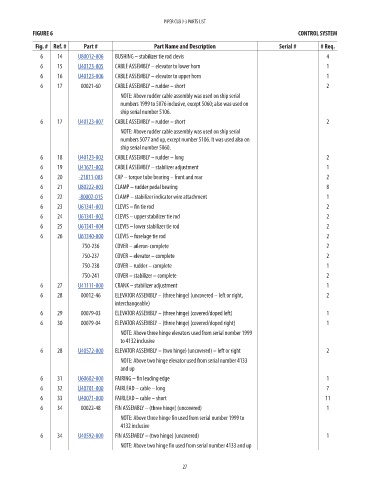

PIPER CUB J-3 PARTS LIST
FIGURE 6 CONTROL SYSTEM

Fig. # Ref. # Part # Part Name and Description Serial # # Req. Price
6 14 U80012-006 BUSHING – stabilizer tie rod clevis 4 17.92
6 15 U40123-005 CABLE ASSEMBLY – elevator to lower horn 1 170.16
6 16 U40123-006 CABLE ASSEMBLY – elevator to upper horn 1 139.08
6 17 00021-60 CABLE ASSEMBLY – rudder – short 2 NM!
NOTE: Above rudder cable assembly was used on ship serial
numbers 1999 to 5076 inclusive, except 5060; also was used on
ship serial number 5106.
6 17 U40123-007 CABLE ASSEMBLY – rudder – short 2 131.49
NOTE: Above rudder cable assembly was used on ship serial
numbers 5077 and up, except number 5106. It was used also on
ship serial number 5060.
6 18 U40123-002 CABLE ASSEMBLY – rudder – long 2 209.11
6 19 U41671-002 CABLE ASSEMBLY – stabilizer adjustment 1 306.74
6 20 -21811-003 CAP – torque tube bearing – front and rear 2 191.88
6 21 U80222-003 CLAMP – rudder pedal bearing 8 19.34
6 22 -80002-015 CLAMP – stabilizer indicator wire attachment 1 21.5
6 23 U61341-003 CLEVIS – fin tie rod 2 33.45
6 24 U61341-002 CLEVIS – upper stabilizer tie rod 2 44.31
6 25 U61341-004 CLEVIS – lower stabilizer tie rod 2 48.26
6 26 U61340-000 CLEVIS – fuselage tie rod 2 44.31
750-236 COVER – aileron-complete 2 NM!
750-237 COVER – elevator – complete 2 NM!
750-238 COVER – rudder – complete 1 NM!
750-241 COVER – stabilizer – complete 2 NM!
6 27 U41111-000 CRANK – stabilizer adjustment 1 126.81
6 28 00012-46 ELEVATOR ASSEMBLY – (three hinge) (uncovered – left or right, 2 NM!
interchangeable)
6 29 00079-03 ELEVATOR ASSEMBLY – (three hinge) (covered/doped left) 1 NM!
6 30 00079-04 ELEVATOR ASSEMBLY – (three hinge) (covered/doped right) 1 NM!
NOTE: Above three hinge elevators used from serial number 1999
to 4132 inclusive
6 28 U40572-000 ELEVATOR ASSEMBLY – (two hinge) (uncovered) – left or right 2 674.78
NOTE: Above two hinge elevator used from serial number 4133
and up
6 31 U60602-000 FAIRING – fin leading edge 1 125.88
6 32 U40701-000 FAIRLEAD – cable – long 7 1.3
6 33 U40071-000 FAIRLEAD – cable – short 11 1.32
6 34 00022-48 FIN ASSEMBLY – (three hinge) (uncovered) 1 NM!
NOTE: Above three hinge fin used from serial number 1999 to
4132 inclusive
6 34 U40592-000 FIN ASSEMBLY – (two hinge) (uncovered) 1 565.72
NOTE: Above two hinge fin used from serial number 4133 and up

27
