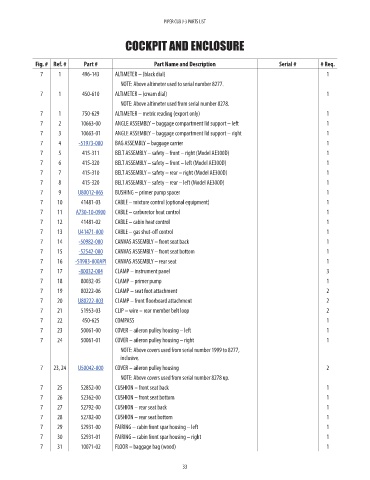

PIPER CUB J-3 PARTS LIST

COCKPIT AND ENCLOSURE

Fig. # Ref. # Part # Part Name and Description Serial # # Req. Price
7 1 496-143 ALTIMETER – (black dial) 1 NM!
NOTE: Above altimeter used to serial number 8277.
7 1 450-610 ALTIMETER – (cream dial) 1 NM!
NOTE: Above altimeter used from serial number 8278.

7 1 750-629 ALTIMETER – metric reading (export only) 1 NM!
7 2 10663-00 ANGLE ASSEMBLY – baggage compartment lid support – left 1 NM!
7 3 10663-01 ANGLE ASSEMBLY – baggage compartment lid support – right 1 NM!
7 4 -51973-000 BAG ASSEMBLY – baggage carrier 1 61.5
7 5 415-311 BELT ASSEMBLY – safety – front – right (Model AE300D) 1 NM!
7 6 415-320 BELT ASSEMBLY – safety – front – left (Model AE300D) 1 NM!
7 7 415-310 BELT ASSEMBLY – safety – rear – right (Model AE300D) 1 NM!
7 8 415-320 BELT ASSEMBLY – safety – rear – left (Model AE300D) 1 NM!
7 9 U80012-065 BUSHING – primer pump spacer 1 14.77
7 10 41481-03 CABLE – mixture control (optional equipment) 1 NM!
7 11 A730-10-0900 CABLE – carburetor heat control 1 78.05
7 12 41481-02 CABLE – cabin heat control 1 NM!
7 13 U41471-000 CABLE – gas shut-off control 1 322.42
7 14 -50982-000 CANVAS ASSEMBLY – front seat back 1 97.13
7 15 -52542-000 CANVAS ASSEMBLY – front seat bottom 1 97.13
7 16 -51983-000API CANVAS ASSEMBLY – rear seat 1 194.25
7 17 -80032-004 CLAMP – instrument panel 3 21.34
7 18 80032-05 CLAMP – primer pump 1 NM!
7 19 80222-06 CLAMP – seat foot attachment 2 NM!
7 20 U80222-003 CLAMP – front floorboard attachment 2 19.34
7 21 51953-03 CLIP – wire – rear member belt loop 2 NM!
7 22 450-625 COMPASS 1 NM!
7 23 50061-00 COVER – aileron pulley housing – left 1 NM!
7 24 50061-01 COVER – aileron pulley housing – right 1 NM!
NOTE: Above covers used from serial number 1999 to 8277,
inclusive.
7 23, 24 U50042-000 COVER – aileron pulley housing 2 35.53
NOTE: Above covers used from serial number 8278 up.
7 25 52852-00 CUSHION – front seat back 1 NM!
7 26 52362-00 CUSHION – front seat bottom 1 NM!
7 27 52792-00 CUSHION – rear seat back 1 NM!
7 28 52782-00 CUSHION – rear seat bottom 1 NM!
7 29 52931-00 FAIRING – cabin front spar housing – left 1 NM!
7 30 52931-01 FAIRING – cabin front spar housing – right 1 NM!
7 31 10071-02 FLOOR – baggage bag (wood) 1 NM!

33
