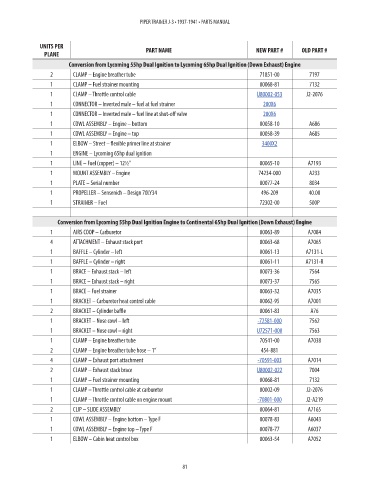

Page 89 - 1937-41 Piper J-3 Trainer Parts Catalog

PIPER TRAINER J-3 • 1937-1941 • PARTS MANUAL

UNITS PER PART NAME NEW PART # OLD PART # PRICE
PLANE
Conversion from Lycoming 55hp Dual Ignition to Lycoming 65hp Dual Ignition (Down Exhaust) Engine
2 CLAMP – Engine breather tube 71851-00 7197 NM!
1 CLAMP – Fuel strainer mounting 00068-81 7132 NM!

1 CLAMP – Throttle control cable U80002-053 J2-2076 27.18
1 CONNECTOR – Inverted male – fuel at fuel strainer 200X6 2.76
1 CONNECTOR – Inverted male – fuel line at shut-off valve 200X6 2.76
1 COWL ASSEMBLY – Engine – bottom 00058-10 A686 NM!
1 COWL ASSEMBLY – Engine – top 00058-39 A685 NM!
1 ELBOW – Street – flexible primer line at strainer 3400X2 2.93
1 ENGINE – Lycoming 65hp dual ignition x
1 LINE – Fuel (copper) – 12½” 00065-10 A7193 NM!
1 MOUNT ASSEMBLY – Engine 74234-000 A233 NM!
1 PLATE – Serial number 00077-24 8034 NM!
1 PROPELLER – Sensenich – Design 70LY34 496-209 40.00 NM!
1 STRAINER – Fuel 72302-00 500P NM!

Conversion from Lycoming 55hp Dual Ignition Engine to Continental 65hp Dual Ignition (Down Exhaust) Engine
1 AIRS COOP – Carburetor 00063-89 A7084 NM!
4 ATTACHMENT – Exhaust stack port 00063-68 A7065 NM!
1 BAFFLE – Cylinder – left 00061-13 A7131-L NM!
1 BAFFLE – Cylinder – right 00061-11 A7131-R NM!
1 BRACE – Exhaust stack – left 00073-36 7564 NM!
1 BRACE – Exhaust stack – right 00073-37 7565 NM!
1 BRACE – Fuel strainer 00063-32 A7035 NM!
1 BRACKET – Carburetor heat control cable 00062-95 A7001 NM!
2 BRACKET – Cylinder baffle 00061-83 A76 NM!
1 BRACKET – Nose cowl – left -72581-000 7562 142.45
1 BRACKET – Nose cowl – right U72571-000 7563 108.72
1 CLAMP – Engine breather tube 70541-00 A7038 NM!
2 CLAMP – Engine breather tube hose – 1” 454-881 NM!
4 CLAMP – Exhaust port attachment -70591-003 A7014 35.53

2 CLAMP – Exhaust stack brace U80002-022 7004 40.39
1 CLAMP – Fuel strainer mounting 00068-81 7132 NM!
1 CLAMP – Throttle control cable at carburetor 80002-09 J2-2076 NM!
1 CLAMP – Throttle control cable on engine mount -70801-000 J2-A219 74.4
2 CLIP – SLIDE ASSEMBLY 00064-81 A7165 NM!
1 COWL ASSEMBLY – Engine bottom – Type F 00078-83 A6043 NM!
1 COWL ASSEMBLY – Engine top – Type F 00078-77 A6037 NM!
1 ELBOW – Cabin heat control box 00063-54 A7052 NM!

81
