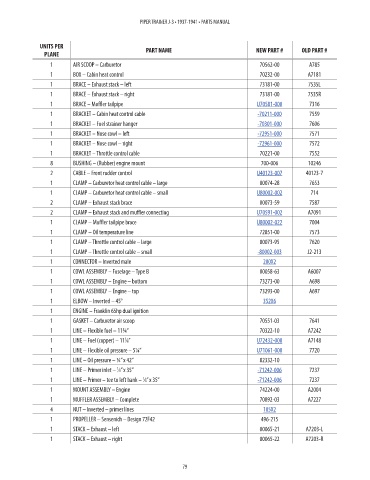

PIPER TRAINER J-3 • 1937-1941 • PARTS MANUAL

UNITS PER PART NAME NEW PART # OLD PART # PRICE
PLANE
1 AIR SCOOP – Carburetor 70562-00 A785 NM!
1 BOX – Cabin heat control 70232-00 A7181 NM!
1 BRACE – Exhaust stack – left 73181-00 7535L NM!

1 BRACE – Exhaust stack – right 73181-00 7535R NM!
1 BRACE – Muffler tailpipe U70581-000 7316 81.12
1 BRACKET – Cabin heat control cable -70211-000 7559 10.01
1 BRACKET – Fuel strainer hanger -70301-000 7606 25.95
1 BRACKET – Nose cowl – left -72951-000 7571 22.47
1 BRACKET – Nose cowl – right -72961-000 7572 25.55
1 BRACKET – Throttle control cable 70221-00 7552 NM!
8 BUSHING – (Rubber) engine mount 700-006 10246 NM!
2 CABLE – Front rudder control U40123-007 40123-7 131.49
1 CLAMP – Carburetor heat control cable – large 00074-28 7653 NM!
1 CLAMP – Carburetor heat control cable – small U80002-002 714 34.32
2 CLAMP – Exhaust stack brace 00073-59 7587 NM!
2 CLAMP – Exhaust stack and muffler connecting U70591-002 A7091 34.61
1 CLAMP – Muffler tailpipe brace U80002-022 7004 40.39
1 CLAMP – Oil temperature line 72851-00 7573 NM!
1 CLAMP – Throttle control cable – large 00073-95 7620 NM!
1 CLAMP – Throttle control cable – small -80002-003 J2-213 6.53
1 CONNECTOR – Inverted male 200X2 2.11
1 COWL ASSEMBLY – Fuselage – Type B 00058-63 A6007 NM!
1 COWL ASSEMBLY – Engine – bottom 73273-00 A698 NM!
1 COWL ASSEMBLY – Engine – top 73293-00 A697 NM!
1 ELBOW – Inverted – 45° 352X6 7.83
1 ENGINE – Franklin 65hp dual ignition X
1 GASKET – Carburetor air scoop 70551-03 7641 NM!
1 LINE – Flexible fuel – 11¾” 70322-10 A7242 NM!
1 LINE – Fuel (copper) – 11 ⁄8” U72432-000 A7148 138.28
5
1 LINE – Flexible oil pressure – 5¼” U71061-000 7720 143.43
1 LINE – Oil pressure – ¼” x 42” 82332-10 NM!

1
1 LINE – Primer inlet – ⁄8” x 35” -71242-006 7237 68.58
1 LINE – Primer – tee to left bank – ⁄8” x 35” -71242-006 7237 68.58
1
1 MOUNT ASSEMBLY – Engine 74224-00 A2004 NM!
1 MUFFLER ASSEMBLY – Complete 70892-03 A7227 NM!
4 NUT – Inverted – primer lines 105X2 2.92
1 PROPELLER – Sensenich – Design 72F42 496-215 NM!
1 STACK – Exhaust – left 00065-21 A7203-L NM!
1 STACK – Exhaust – right 00065-22 A7203-R NM!
