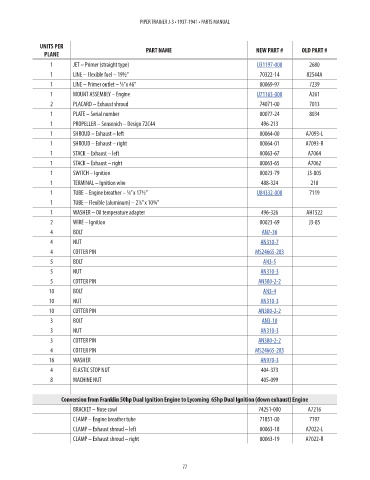

PIPER TRAINER J-3 • 1937-1941 • PARTS MANUAL

UNITS PER PART NAME NEW PART # OLD PART # PRICE
PLANE
1 JET – Primer (straight type) U31197-000 2680 59.87
1 LINE – Flexible fuel – 19½” 70322-14 82544A NM!
1 LINE – Primer outlet – ⁄8” x 46” 00069-97 7239 NM!
1
1 MOUNT ASSEMBLY – Engine U71163-000 A261 1197.11
2 PLACARD – Exhaust shroud 74071-00 7013 NM!
1 PLATE – Serial number 00077-24 8034 NM!
1 PROPELLER – Sensenich – Design 72C44 496-213 NM!
1 SHROUD – Exhaust – left 00064-00 A7093-L NM!
1 SHROUD – Exhaust – right 00064-01 A7093-R NM!
1 STACK – Exhaust – left 00063-67 A7064 NM!
1 STACK – Exhaust – right 00063-65 A7062 NM!
1 SWITCH – Ignition 00023-79 J3-805 NM!
1 TERMINAL – Ignition wire 488-324 210 NM!
1 TUBE – Engine breather – ⁄8” x 17½” U84332-000 7119 99.11
5
1 TUBE – Flexible (aluminum) – 2 ⁄8” x 10¾” x
1
1 WASHER – Oil temperature adapter 496-326 AH1522 NM!
2 WIRE – Ignition 00023-69 J3-85 NM!
4 BOLT AN7-36 3.9
4 NUT AN310-7 1.5
4 COTTER PIN MS24665-283 0.04
5 BOLT AN3-5 0.6
5 NUT AN310-3 1.5
5 COTTER PIN AN380-2-2 0.04
10 BOLT AN3-4 0.6
10 NUT AN310-3 1.5
10 COTTER PIN AN380-2-2 0.04
3 BOLT AN3-10 0.72
3 NUT AN310-3 1.5
3 COTTER PIN AN380-2-2 0.04
4 COTTER PIN MS24665-283 0.04
16 WASHER AN970-3 0.16

4 ELASTIC STOP NUT 404-373 NM!
8 MACHINE NUT 405-099 NM!

Conversion from Franklin 50hp Dual Ignition Engine to Lycoming 65hp Dual Ignition (down exhaust) Engine
BRACKET – Nose cowl 74251-000 A7216 NM!
CLAMP – Engine breather tube 71851-00 7197 NM!
CLAMP – Exhaust shroud – left 00063-18 A7022-L NM!
CLAMP – Exhaust shroud – right 00063-19 A7022-R NM!

77
