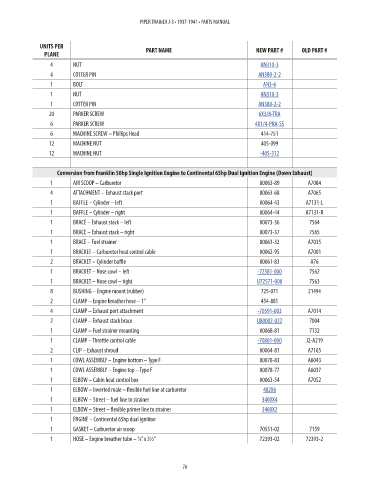

PIPER TRAINER J-3 • 1937-1941 • PARTS MANUAL

UNITS PER PART NAME NEW PART # OLD PART # PRICE
PLANE
4 NUT AN310-3 1.5
4 COTTER PIN AN380-2-2 0.04
1 BOLT AN3-6 0.52

1 NUT AN310-3 1.5
1 COTTER PIN AN380-2-2 0.04
20 PARKER SCREW 6X3/8-TRA 0.06
6 PARKER SCREW 4X1/4-PRA-SS 0.02
6 MACHINE SCREW – Phillips Head 414-751 NM!
12 MACHINE NUT 405-099 NM!
12 MACHINE NUT -405-312 0.07

Conversion from Franklin 50hp Single Ignition Engine to Continental 65hp Dual Ignition Engine (Down Exhaust)
1 AIR SCOOP – Carburetor 00063-89 A7084 NM!
4 ATTACHMENT – Exhaust stack port 00063-68 A7065 NM!
1 BAFFLE – Cylinder – left 00064-43 A7131-L NM!
1 BAFFLE – Cylinder – right 00064-44 A7131-R NM!
1 BRACE – Exhaust stack – left 00073-36 7564 NM!
1 BRACE – Exhaust stack – right 00073-37 7565 NM!
1 BRACE – Fuel strainer 00063-32 A7035 NM!
1 BRACKET – Carburetor heat control cable 00062-95 A7001 NM!
2 BRACKET – Cylinder baffle 00061-83 A76 NM!
1 BRACKET – Nose cowl – left -72581-000 7562 142.45
1 BRACKET – Nose cowl – right U72571-000 7563 108.72
8 BUSHING – Engine mount (rubber) 725-071 21494 NM!
2 CLAMP – Engine breather hose – 1” 454-881 NM!
4 CLAMP – Exhaust port attachment -70591-003 A7014 35.53
2 CLAMP – Exhaust stack brace U80002-022 7004 40.39
1 CLAMP – Fuel strainer mounting 00068-81 7132 NM!
1 CLAMP – Throttle control cable -70801-000 J2-A219 74.4
2 CLIP – Exhaust shroud 00064-81 A7165 NM!
1 COWL ASSEMBLY – Engine bottom – Type F 00078-83 A6043 NM!

1 COWL ASSEMBLY – Engine top – Type F 00078-77 A6037 NM!
1 ELBOW – Cabin heat control box 00063-54 A7052 NM!
1 ELBOW – Inverted male – flexible fuel line at carburetor 402X6 7.94
1 ELBOW – Street – fuel line to strainer 3400X4 7.4
1 ELBOW – Street – flexible primer line to strainer 3400X2 2.93
1 ENGINE – Continental 65hp dual ignition x
1 GASKET – Carburetor air scoop 70551-02 7159 NM!
1 HOSE – Engine breather tube – ⁄8” x 3½” 72393-02 72393-2 NM!
