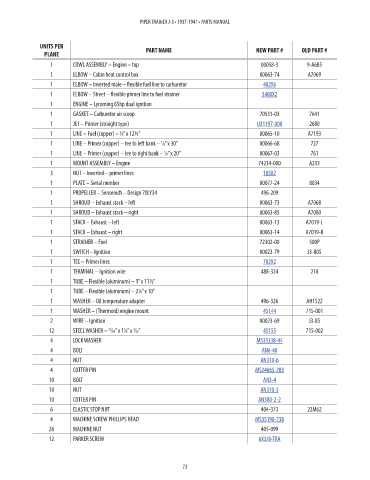

PIPER TRAINER J-3 • 1937-1941 • PARTS MANUAL

UNITS PER PART NAME NEW PART # OLD PART # PRICE
PLANE
I COWL ASSEMBLY – Engine – top 00058-3 9-A685 NM!
1 ELBOW – Cabin heat control box 00063-74 A7069 NM!
1 ELBOW – Inverted male – flexible fuel line to carburetor 402X6 7.94

1 ELBOW – Street – flexible primer line to fuel strainer 3400X2 2.93
1 ENGINE – Lycoming 65hp dual ignition X
1 GASKET – Carburetor air scoop 70551-03 7641 NM!
1 JET – Primer (straight type) U31197-000 2680 59.87
1 LINE – Fuel (copper) – ⁄8” x 12½” 00065-10 A7193 NM!
3
1 LINE – Primer (copper) – tee to left bank – ⁄8” x 30” 00066-68 727 NM!
1
1 LINE – Primer (copper) – tee to right bank – ⁄8” x 20” 00067-03 761 NM!
1
1 MOUNT ASSEMBLY – Engine 74234-000 A233 NM!
3 NUT – Inverted – primer lines 105X2 2.92
1 PLATE – Serial number 00077-24 8034 NM!
1 PROPELLER – Sensenich – Design 70LY34 496-209 NM!
1 SHROUD – Exhaust stack – left 00063-73 A7068 NM!
1 SHROUD – Exhaust stack – right 00063-85 A7080 NM!
1 STACK – Exhaust – left 00063-13 A7019-L NM!
1 STACK – Exhaust – right 00063-14 A7019-R NM!
1 STRAINER – Fuel 72302-00 500P NM!
1 SWITCH – Ignition 00023-79 J3-805 NM!
1 TEE – Primer lines 702X2 39.12
1 TERMINAL – Ignition wire 488-324 210 NM!
1 TUBE – Flexible (aluminum) – 1” x 11½” X
1 TUBE – Flexible (aluminum) – 2 ⁄8” x 10” X
1
1 WASHER – Oil temperature adapter 496-326 AH1522 NM!
1 WASHER – (Thermoid) engine mount 45144 715-001 24.3
2 WIRE – Ignition 00023-69 J3-85 NM!
3
1
12 STEEL WASHER – ⁄64” x 1 ⁄8” x ⁄32” 45155 715-002 1.03
25
4 LOCK WASHER MS35338-44 0.08
4 BOLT AN6-40 3.72
4 NUT AN310-6 1.8

4 COTTER PIN MS24665-283 0.04
10 BOLT AN3-4 0.6
10 NUT AN310-3 1.5
10 COTTER PIN AN380-2-2 0.04
6 ELASTIC STOP NUT 404-373 22M62 NM!
4 MACHINE SCREW PHILLIPS HEAD MS35190-238 0.19
26 MACHINE NUT 405-099 NM!
12 PARKER SCREW 6X3/8-TRA 0.06

73
