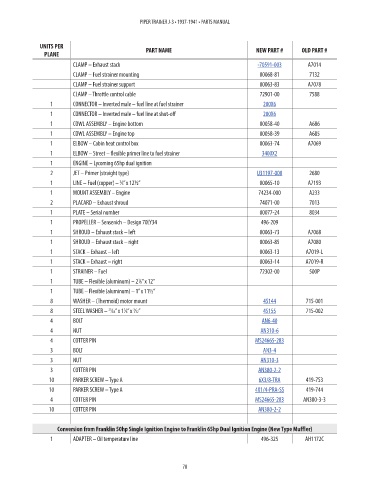

PIPER TRAINER J-3 • 1937-1941 • PARTS MANUAL

UNITS PER PART NAME NEW PART # OLD PART # PRICE
PLANE
CLAMP – Exhaust stack -70591-003 A7014 35.53
CLAMP – Fuel strainer mounting 00068-81 7132 NM!
CLAMP – Fuel strainer support 00063-83 A7078 NM!

CLAMP – Throttle control cable 72901-00 7588 NM!
1 CONNECTOR – Inverted male – fuel line at fuel strainer 200X6 2.76
1 CONNECTOR – Inverted male – fuel line at shut-off 200X6 2.76
1 COWL ASSEMBLY – Engine bottom 00058-40 A686 NM!
1 COWL ASSEMBLY – Engine top 00058-39 A685 NM!
1 ELBOW – Cabin heat control box 00063-74 A7069 NM!
1 ELBOW – Street – flexible primer line to fuel strainer 3400X2 2.93
1 ENGINE – Lycoming 65hp dual ignition x
2 JET – Primer (straight type) U31197-000 2680 59.87
1 LINE – Fuel (copper) – ⁄8” x 12½” 00065-10 A7193 NM!
3
1 MOUNT ASSEMBLY – Engine 74234-000 A233 NM!
2 PLACARD – Exhaust shroud 74071-00 7013 NM!
1 PLATE – Serial number 00077-24 8034 NM!
1 PROPELLER – Sensenich – Design 70LY34 496-209 NM!
1 SHROUD – Exhaust stack – left 00063-73 A7068 NM!
1 SHROUD – Exhaust stack – right 00063-85 A7080 NM!
1 STACK – Exhaust – left 00063-13 A7019-L NM!
1 STACK – Exhaust – right 00063-14 A7019-R NM!
1 STRAINER – Fuel 72302-00 500P NM!
1 TUBE – Flexible (aluminum) – 2 ⁄8” x 12” x
1
1 TUBE – Flexible (aluminum) – 1” x 11½” x
8 WASHER – (Thermoid) motor mount 45144 715-001 24.3
8 STEEL WASHER – ⁄64” x 1 ⁄8” x ⁄32” 45155 715-002 1.03
25
1
3
4 BOLT AN6-40 3.72
4 NUT AN310-6 1.8
4 COTTER PIN MS24665-283 0.04
3 BOLT AN3-4 0.6
3 NUT AN310-3 1.5

3 COTTER PIN AN380-2-2 0.04
10 PARKER SCREW – Type A 6X3/8-TRA 419-753 0.06
10 PARKER SCREW – Type A 4X1/4-PRA-SS 419-744 0.02
4 COTTER PIN MS24665-283 AN380-3-3 0.04
10 COTTER PIN AN380-2-2 0.04

Conversion from Franklin 50hp Single Ignition Engine to Franklin 65hp Dual Ignition Engine (New Type Muffler)
1 ADAPTER – Oil temperature line 496-325 AH1172C NM!

78
