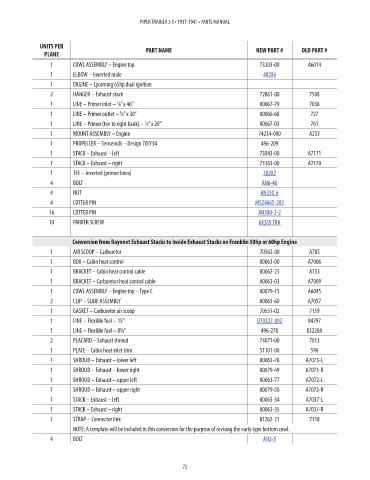

Page 83 - 1937-41 Piper J-3 Trainer Parts Catalog

PIPER TRAINER J-3 • 1937-1941 • PARTS MANUAL

UNITS PER PART NAME NEW PART # OLD PART # PRICE
PLANE
1 COWL ASSEMBLY – Engine top 73203-00 A6014 NM!
1 ELBOW – Inverted male 402X6 7.94
1 ENGINE – Lycoming 65hp dual ignition X

2 HANGER – Exhaust stack 72861-00 7508 NM!
1 LINE – Primer inlet – ⁄8” x 46” 00067-79 7036 NM!
1
1 LINE – Primer outlet – ⁄8” x 30” 00066-68 727 NM!
1
1 LINE – Primer (tee to right bank) – ⁄8” x 20” 00067-03 761 NM!
1
1 MOUNT ASSEMBLY – Engine 74234-000 A233 NM!
1 PROPELLER – Sensenich – Design 70LY34 496-209 NM!
1 STACK – Exhaust – left 73043-00 A7171 NM!
1 STACK – Exhaust – right 73163-00 A7170 NM!
1 TEE – Inverted (primer lines) 702X2 39.12
4 BOLT AN6-40 3.72
4 NUT AN310-6 1.8
4 COTTER PIN MS24665-283 0.04
16 COTTER PIN AN380-2-2 0.04
10 PARKER SCREW 6X3/8-TRA 0.06

Conversion from Bayonet Exhaust Stacks to Inside Exhaust Stacks on Franklin 50hp or 60hp Engine
1 AIR SCOOP – Carburetor 70562-00 A785 NM!
1 BOX – Cabin heat control 00063-00 A7006 NM!
1 BRACKET – Cabin heat control cable 00062-23 A733 NM!
1 BRACKET – Carburetor heat control cable 00063-03 A7009 NM!
1 COWL ASSEMBLY – Engine top – Type C 00079-15 A6045 NM!
2 CLIP – SLIDE ASSEMBLY 00063-60 A7057 NM!
1 GASKET – Carburetor air scoop 70551-02 7159 NM!
1 LINE – Flexible fuel – 15” U70322-002 84297 183.92
1 LINE – Flexible fuel – 8½” 496-278 83220A NM!
2 PLACARD – Exhaust shroud 74071-00 7013 NM!
1 PLATE – Cabin heat inlet trim 51101-00 596 NM!
1 SHROUD – Exhaust – lower left 00063-78 A7073-L NM!

1 SHROUD – Exhaust – lower right 00079-49 A7073-R NM!
1 SHROUD – Exhaust – upper left 00063-77 A7072-L NM!
1 SHROUD – Exhaust – upper right 00079-50 A7072-R NM!
1 STACK – Exhaust – left 00063-34 A7037-L NM!
1 STACK – Exhaust – right 00063-35 A7037-R NM!
1 STRAP – Connector link 81262-21 7118 NM!
NOTE: A template will be included in this conversion for the purpose of revising the early type bottom cowl.
4 BOLT AN3-5 0.6

75
