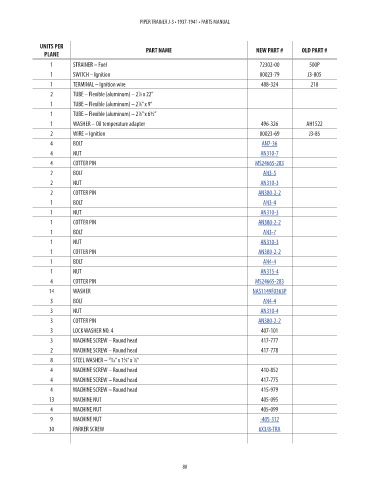

PIPER TRAINER J-3 • 1937-1941 • PARTS MANUAL

UNITS PER PART NAME NEW PART # OLD PART # PRICE
PLANE
1 STRAINER – Fuel 72302-00 500P NM!
1 SWITCH – Ignition 00023-79 J3-805 NM!
1 TERMINAL – Ignition wire 488-324 210 NM!

2 TUBE – Flexible (aluminum) – 2 ⁄8 x 22” X
1
1 TUBE – Flexible (aluminum) – 2 ⁄8” x 9” X
1
1 TUBE – Flexible (aluminum) – 2 ⁄8” x 6½” X
1
1 WASHER – Oil temperature adapter 496-326 AH1522 NM!
2 WIRE – Ignition 00023-69 J3-85 NM!
4 BOLT AN7-36 3.9
4 NUT AN310-7 1.5
4 COTTER PIN MS24665-283 0.04
2 BOLT AN3-5 0.6
2 NUT AN310-3 1.5
2 COTTER PIN AN380-2-2 0.04
1 BOLT AN3-4 0.6
1 NUT AN310-3 1.5
1 COTTER PIN AN380-2-2 0.04
1 BOLT AN3-7 1
1 NUT AN310-3 1.5
1 COTTER PIN AN380-2-2 0.04
1 BOLT AN4-4 0.92
1 NUT AN315-4 0.22
4 COTTER PIN MS24665-283 0.04
14 WASHER NAS1149F0363P 0.04
3 BOLT AN4-4 0.92
3 NUT AN310-4 1.6
3 COTTER PIN AN380-2-2 0.04
3 LOCK WASHER NO. 4 407-101 NM!
3 MACHINE SCREW – Round head 417-777 NM!
2 MACHINE SCREW – Round head 417-778 NM!
8 STEEL WASHER – ⁄64” x 1 ⁄8” x ⁄8” x
29
3
1
4 MACHINE SCREW – Round head 410-852 NM!
4 MACHINE SCREW – Round head 417-775 NM!
4 MACHINE SCREW – Round head 415-979 NM!
13 MACHINE NUT 405-095 NM!
4 MACHINE NUT 405-099 NM!
9 MACHINE NUT -405-312 0.07
30 PARKER SCREW 6X3/8-TRA 0.06

80
