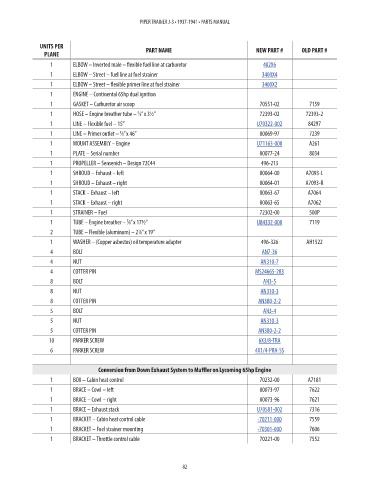

PIPER TRAINER J-3 • 1937-1941 • PARTS MANUAL

UNITS PER PART NAME NEW PART # OLD PART # PRICE
PLANE
1 ELBOW – Inverted male – flexible fuel line at carburetor 402X6 7.94
1 ELBOW – Street – fuel line at fuel strainer 3400X4 7.4
1 ELBOW – Street – flexible primer line at fuel strainer 3400X2 2.93

1 ENGINE – Continental 65hp dual ignition X
1 GASKET – Carburetor air scoop 70551-02 7159 NM!
1 HOSE – Engine breather tube – ⁄8” x 3½” 72393-02 72393-2 NM!
5
1 LINE – Flexible fuel – 15” U70322-002 84297 183.92
1
1 LINE – Primer outlet – ⁄8” x 46” 00069-97 7239 NM!
1 MOUNT ASSEMBLY – Engine U71163-000 A261 1197.11
1 PLATE – Serial number 00077-24 8034 NM!
1 PROPELLER – Sensenich – Design 72C44 496-213 NM!
1 SHROUD – Exhaust – left 00064-00 A7093-L NM!
1 SHROUD – Exhaust – right 00064-01 A7093-R NM!
1 STACK – Exhaust – left 00063-67 A7064 NM!
1 STACK – Exhaust – right 00063-65 A7062 NM!
1 STRAINER – Fuel 72302-00 500P NM!
1 TUBE – Engine breather – ⁄8” x 17½” U84332-000 7119 99.11
5
2 TUBE – Flexible (aluminum) – 2 ⁄8” x 19” X
1
1 WASHER – (Copper asbestos) oil temperature adapter 496-326 AH1522 NM!
4 BOLT AN7-36 3.9
4 NUT AN310-7 1.5
4 COTTER PIN MS24665-283 0.04
8 BOLT AN3-5 0.6
8 NUT AN310-3 1.5
8 COTTER PIN AN380-2-2 0.04
5 BOLT AN3-4 0.6
5 NUT AN310-3 1.5
5 COTTER PIN AN380-2-2 0.04
10 PARKER SCREW 6X3/8-TRA 0.06
6 PARKER SCREW 4X1/4-PRA-SS 0.02

Conversion from Down Exhaust System to Muffler on Lycoming 65hp Engine

1 BOX – Cabin heat control 70232-00 A7181 NM!
1 BRACE – Cowl – left 00073-97 7622 NM!
1 BRACE – Cowl – right 00073-96 7621 NM!
1 BRACE – Exhaust stack U70581-002 7316 63.57
1 BRACKET – Cabin heat control cable -70211-000 7559 10.01
1 BRACKET – Fuel strainer mounting -70301-000 7606 25.95
1 BRACKET – Throttle control cable 70221-00 7552 NM!

82
