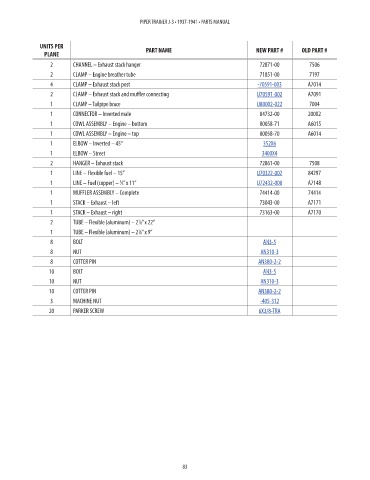

PIPER TRAINER J-3 • 1937-1941 • PARTS MANUAL

UNITS PER PART NAME NEW PART # OLD PART # PRICE
PLANE
2 CHANNEL – Exhaust stack hanger 72871-00 7506 NM!
2 CLAMP – Engine breather tube 71851-00 7197 NM!
4 CLAMP – Exhaust stack post -70591-003 A7014 35.53

2 CLAMP – Exhaust stack and muffler connecting U70591-002 A7091 34.61
1 CLAMP – Tailpipe brace U80002-022 7004 40.39
1 CONNECTOR – Inverted male 84732-00 200X2 NM!
1 COWL ASSEMBLY – Engine – bottom 00058-71 A6015 NM!
1 COWL ASSEMBLY – Engine – top 00058-70 A6014 NM!
1 ELBOW – Inverted – 45° 352X6 7.83
1 ELBOW – Street 3400X4 7.4
2 HANGER – Exhaust stack 72861-00 7508 NM!
1 LINE – Flexible fuel – 15” U70322-002 84297 183.92
1 LINE – Fuel (copper) – ⁄8” x 11” U72432-000 A7148 138.28
5
1 MUFFLER ASSEMBLY – Complete 74414-00 74414 NM!
1 STACK – Exhaust – left 73043-00 A7171 NM!
1 STACK – Exhaust – right 73163-00 A7170 NM!
2 TUBE – Flexible (aluminum) – 2 ⁄8” x 22” x
1
1 TUBE – Flexible (aluminum) – 2 ⁄8” x 9” x
1
8 BOLT AN3-5 0.6
8 NUT AN310-3 1.5
8 COTTER PIN AN380-2-2 0.04
10 BOLT AN3-5 0.6
10 NUT AN310-3 1.5
10 COTTER PIN AN380-2-2 0.04
3 MACHINE NUT -405-312 0.07
20 PARKER SCREW 6X3/8-TRA 0.06
