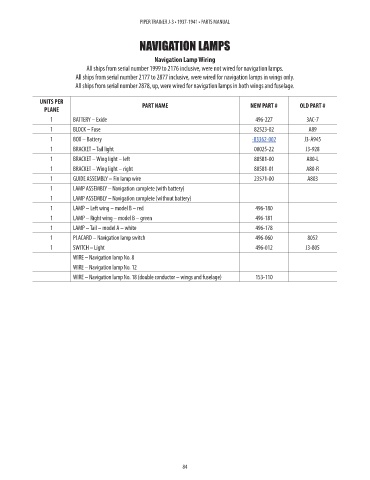

PIPER TRAINER J-3 • 1937-1941 • PARTS MANUAL


                                               NAVIGATION LAMPS

                                                    Navigation Lamp Wiring
                              All ships from serial number 1999 to 2176 inclusive, were not wired for navigation lamps.
                          All ships from serial number 2177 to 2877 inclusive, were wired for navigation lamps in wings only.
                          All ships from serial number 2878, up, were wired for navigation lamps in both wings and fuselage.

              UNITS PER
                PLANE                           PART NAME                           NEW PART #      OLD PART #                                 PRICE
                  1      BATTERY – Exide                                              496-227         3AC-7                                     NM!
                  1      BLOCK – Fuse                                                82523-02          A89                                      NM!
                  1      BOX – Battery                                              -83362-002        J3-A945                                  202.42
                  1      BRACKET – Tail light                                        00025-22         J3-928                                    NM!
                  1      BRACKET – Wing light – left                                 80581-00         A80-L                                     NM!
                  1      BRACKET – Wing light – right                                80581-01         A80-R                                     NM!
                  1      GUIDE ASSEMBLY – Fin lamp wire                              23571-00          A803                                     NM!
                  1      LAMP ASSEMBLY – Navigation complete (with battery)                                                                      x
                  1      LAMP ASSEMBLY – Navigation complete (without battery)                                                                   x
                  1      LAMP – Left wing – model B – red                             496-180                                                   NM!
                  1      LAMP – Right wing – model B – green                          496-181                                                   NM!
                  1      LAMP – Tail – model A – white                                496-178                                                   NM!
                  1      PLACARD – Navigation lamp switch                             496-060          8052                                     NM!
                  1      SWITCH – Light                                               496-012         J3-805                                    NM!
                         WIRE – Navigation lamp No. 8                                                                                            x
                         WIRE – Navigation lamp No. 12                                                                                           x
                         WIRE – Navigation lamp No. 18 (double conductor – wings and fuselage)  153-110                                         NM!
