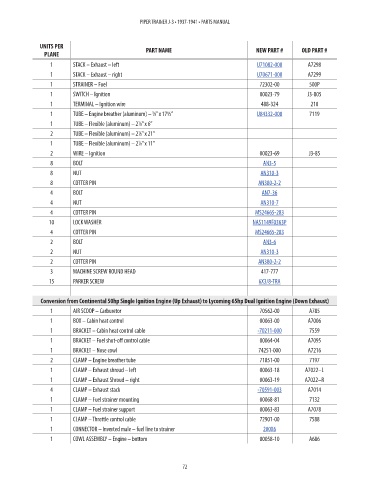

PIPER TRAINER J-3 • 1937-1941 • PARTS MANUAL

UNITS PER PART NAME NEW PART # OLD PART # PRICE
PLANE
1 STACK – Exhaust – left U71082-000 A7298 1047.22
1 STACK – Exhaust – right U70671-000 A7299 928.72
1 STRAINER – Fuel 72302-00 500P NM!

1 SWITCH – Ignition 00023-79 J3-805 NM!
1 TERMINAL – Ignition wire 488-324 210 NM!
1 TUBE – Engine breather (aluminum) – ⁄8” x 17½” U84332-000 7119 99.11
5
1 TUBE – Flexible (aluminum) – 2 ⁄8” x 6” X
1
1
2 TUBE – Flexible (aluminum) – 2 ⁄8” x 21” X
1 TUBE – Flexible (aluminum) – 2 ⁄8” x 11” X
1
2 WIRE – Ignition 00023-69 J3-85 NM!
8 BOLT AN3-5 0.6
8 NUT AN310-3 1.5
8 COTTER PIN AN380-2-2 0.04
4 BOLT AN7-36 3.9
4 NUT AN310-7 1.5
4 COTTER PIN MS24665-283 0.04
10 LOCK WASHER NAS1149F0363P 0.04
4 COTTER PIN MS24665-283 0.04
2 BOLT AN3-6 0.52
2 NUT AN310-3 1.5
2 COTTER PIN AN380-2-2 0.04
3 MACHINE SCREW ROUND HEAD 417-777 NM!
15 PARKER SCREW 6X3/8-TRA 0.06

Conversion from Continental 50hp Single Ignition Engine (Up Exhaust) to Lycoming 65hp Dual Ignition Engine (Down Exhaust)
1 AIR SCOOP – Carburetor 70562-00 A785 NM!
1 BOX – Cabin heat control 00063-00 A7006 NM!
1 BRACKET – Cabin heat control cable -70211-000 7559 10.01
1 BRACKET – Fuel shut-off control cable 00064-04 A7095 NM!
1 BRACKET – Nose cowl 74251-000 A7216 NM!
2 CLAMP – Engine breather tube 71851-00 7197 NM!

1 CLAMP – Exhaust shroud – left 00063-18 A7022–L NM!
1 CLAMP – Exhaust Shroud – right 00063-19 A7022–R NM!
4 CLAMP – Exhaust stack -70591-003 A7014 35.53
1 CLAMP – Fuel strainer mounting 00068-81 7132 NM!
1 CLAMP – Fuel strainer support 00063-83 A7078 NM!
1 CLAMP – Throttle control cable 72901-00 7588 NM!
1 CONNECTOR – Inverted male – fuel line to strainer 200X6 2.76
1 COWL ASSEMBLY – Engine – bottom 00058-10 A686 NM!
