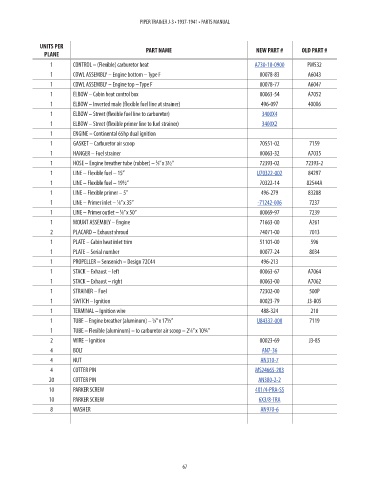

PIPER TRAINER J-3 • 1937-1941 • PARTS MANUAL

UNITS PER PART NAME NEW PART # OLD PART # PRICE
PLANE
1 CONTROL – (Flexible) carburetor heat A730-10-0900 PM532 78.05
1 COWL ASSEMBLY – Engine bottom – Type F 00078-83 A6043 NM!
1 COWL ASSEMBLY – Engine top – Type F 00078-77 A6047 NM!

1 ELBOW – Cabin heat control box 00063-54 A7052 NM!
1 ELBOW – Inverted male (flexible fuel line at strainer) 496-097 400X6 NM!
1 ELBOW – Street (flexible fuel line to carburetor) 3400X4 7.4
1 ELBOW – Street (flexible primer line to fuel strainer) 3400X2 2.93
1 ENGINE – Continental 65hp dual ignition
1 GASKET – Carburetor air scoop 70551-02 7159 NM!
1 HANGER – Fuel strainer 00063-32 A7035 NM!
1 HOSE – Engine breather tube (rubber) – ⁄8” x 3½” 72393-02 72393-2 NM!
5
1 LINE – Flexible fuel – 15” U70322-002 84297 183.92
1 LINE – Flexible fuel – 19½” 70322-14 82544A NM!
1 LINE – Flexible primer – 5” 496-279 83288 NM!
1 LINE – Primer inlet – ⁄8” x 35” -71242-006 7237 68.58
1
1 LINE – Primer outlet – ⁄8” x 50” 00069-97 7239 NM!
1
1 MOUNT ASSEMBLY – Engine 71663-00 A261 NM!
2 PLACARD – Exhaust shroud 74071-00 7013 NM!
1 PLATE – Cabin heat inlet trim 51101-00 596 NM!
1 PLATE – Serial number 00077-24 8034 NM!
1 PROPELLER – Sensenich – Design 72C44 496-213 NM!
1 STACK – Exhaust – left 00063-67 A7064 NM!
1 STACK – Exhaust – right 00063-00 A7062 NM!
1 STRAINER – Fuel 72302-00 500P NM!
1 SWITCH – Ignition 00023-79 J3-805 NM!
1 TERMINAL – Ignition wire 488-324 210 NM!
1 TUBE – Engine breather (aluminum) – ⁄8” x 17½” U84332-000 7119 99.11
5
1 TUBE – Flexible (aluminum) – to carburetor air scoop – 2 ⁄8” x 10¾”
1
2 WIRE – Ignition 00023-69 J3-85 NM!
4 BOLT AN7-36 3.9
4 NUT AN310-7 1.5

4 COTTER PIN MS24665-283 0.04
20 COTTER PIN AN380-2-2 0.04
10 PARKER SCREW 4X1/4-PRA-SS 0.02
10 PARKER SCREW 6X3/8-TRA 0.06
8 WASHER AN970-6 0.26

67
