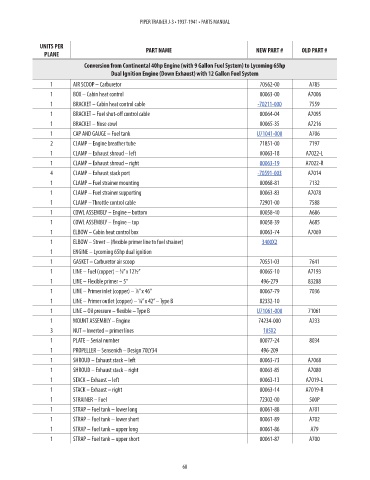

Page 76 - 1937-41 Piper J-3 Trainer Parts Catalog

PIPER TRAINER J-3 • 1937-1941 • PARTS MANUAL

UNITS PER PART NAME NEW PART # OLD PART # PRICE
PLANE

Conversion from Continental 40hp Engine (with 9 Gallon Fuel System) to Lycoming 65hp
Dual Ignition Engine (Down Exhaust) with 12 Gallon Fuel System
1 AIR SCOOP – Carburetor 70562-00 A785 NM!

1 BOX – Cabin heat control 00063-00 A7006 NM!
1 BRACKET – Cabin heat control cable -70211-000 7559 10.01
1 BRACKET – Fuel shut-off control cable 00064-04 A7095 NM!
1 BRACKET – Nose cowl 00065-35 A7216 NM!
1 CAP AND GAUGE – Fuel tank U71041-000 A706 187.64
2 CLAMP – Engine breather tube 71851-00 7197 NM!
1 CLAMP – Exhaust shroud – left 00063-18 A7022-L NM!
1 CLAMP – Exhaust shroud – right 00063-19 A7022-R NM!
4 CLAMP – Exhaust stack port -70591-003 A7014 35.53
1 CLAMP – Fuel strainer mounting 00068-81 7132 NM!
1 CLAMP – Fuel strainer supporting 00063-83 A7078 NM!
1 CLAMP – Throttle control cable 72901-00 7588 NM!
1 COWL ASSEMBLY – Engine – bottom 00058-40 A686 NM!
1 COWL ASSEMBLY – Engine – top 00058-39 A685 NM!
1 ELBOW – Cabin heat control box 00063-74 A7069 NM!
1 ELBOW – Street – (flexible primer line to fuel strainer) 3400X2 2.93
1 ENGINE – Lycoming 65hp dual ignition
1 GASKET – Carburetor air scoop 70551-03 7641 NM!
1 LINE – Fuel (copper) – ⁄8” x 12½” 00065-10 A7193 NM!
3
1 LINE – Flexible primer – 5” 496-279 83288 NM!
1
1 LINE – Primer inlet (copper) – ⁄8” x 46” 00067-79 7036 NM!
1 LINE – Primer outlet (copper) – ¼” x 42” – Type B 82332-10 NM!
1 LINE – Oil pressure – flexible – Type B U71061-000 71061 143.43
1 MOUNT ASSEMBLY – Engine 74234-000 A233 NM!
3 NUT – Inverted – primer lines 105X2 2.92
1 PLATE – Serial number 00077-24 8034 NM!
1 PROPELLER – Sensenich – Design 70LY34 496-209 NM!
1 SHROUD – Exhaust stack – left 00063-73 A7068 NM!

1 SHROUD – Exhaust stack – right 00063-85 A7080 NM!
1 STACK – Exhaust – left 00063-13 A7019-L NM!
1 STACK – Exhaust – right 00063-14 A7019-R NM!
1 STRAINER – Fuel 72302-00 500P NM!
1 STRAP – Fuel tank – lower long 00061-88 A701 NM!
1 STRAP – Fuel tank – lower short 00061-89 A702 NM!
1 STRAP – Fuel tank – upper long 00061-86 A79 NM!
1 STRAP – Fuel tank – upper short 00061-87 A700 NM!

68
