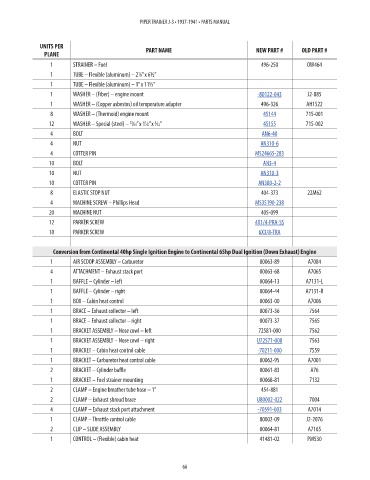

Page 74 - 1937-41 Piper J-3 Trainer Parts Catalog

PIPER TRAINER J-3 • 1937-1941 • PARTS MANUAL

UNITS PER PART NAME NEW PART # OLD PART # PRICE
PLANE
1 STRAINER – Fuel 496-250 OW464 NM!
1 TUBE – Flexible (aluminum) – 2 ⁄8” x 6½” x
1
1 TUBE – Flexible (aluminum) – 1” x 11½” x

1 WASHER – (Fiber) – engine mount -80122-043 J2-885 4.51
1 WASHER – (Copper asbestos) oil temperature adapter 496-326 AH1522 NM!
8 WASHER – (Thermoid) engine mount 45144 715-001 24.3
12 WASHER – Special (steel) – ⁄64” x 1 ⁄8” x ⁄32” 45155 715-002 1.03
25
1
3
4 BOLT AN6-40 3.72
4 NUT AN310-6 1.8
4 COTTER PIN MS24665-283 0.04
10 BOLT AN3-4 0.6
10 NUT AN310-3 1.5
10 COTTER PIN AN380-2-2 0.04
8 ELASTIC STOP NUT 404-373 22M62 NM!
4 MACHINE SCREW – Phillips Head MS35190-238 0.19
20 MACHINE NUT 405-099 NM!
12 PARKER SCREW 4X1/4-PRA-SS 0.02
10 PARKER SCREW 6X3/8-TRA 0.06

Conversion from Continental 40hp Single Ignition Engine to Continental 65hp Dual Ignition (Down Exhaust) Engine
1 AIR SCOOP ASSEMBLY – Carburetor 00063-89 A7084 NM!
4 ATTACHMENT – Exhaust stack port 00063-68 A7065 NM!
1 BAFFLE – Cylinder – left 00064-13 A7131-L NM!
1 BAFFLE – Cylinder – right 00064-44 A7131-R NM!
1 BOX – Cabin heat control 00063-00 A7006 NM!
1 BRACE – Exhaust collector – left 00073-36 7564 NM!
1 BRACE – Exhaust collector – right 00073-37 7565 NM!
1 BRACKET ASSEMBLY – Nose cowl – left 72581-000 7562 NM!
1 BRACKET ASSEMBLY – Nose cowl – right U72571-000 7563 108.72
1 BRACKET – Cabin heat control cable -70211-000 7559 10.01
1 BRACKET – Carburetor heat control cable 00062-95 A7001 NM!

2 BRACKET – Cylinder baffle 00061-83 A76 NM!
1 BRACKET – Fuel strainer mounting 00068-81 7132 NM!
2 CLAMP – Engine breather tube hose – 1” 454-881 NM!
2 CLAMP – Exhaust shroud brace U80002-022 7004 40.39
4 CLAMP – Exhaust stack port attachment -70591-003 A7014 35.53
1 CLAMP – Throttle control cable 80002-09 J2-2076 NM!
2 CLIP – SLIDE ASSEMBLY 00064-81 A7165 NM!
1 CONTROL – (Flexible) cabin heat 41481-02 PM530 NM!

66
