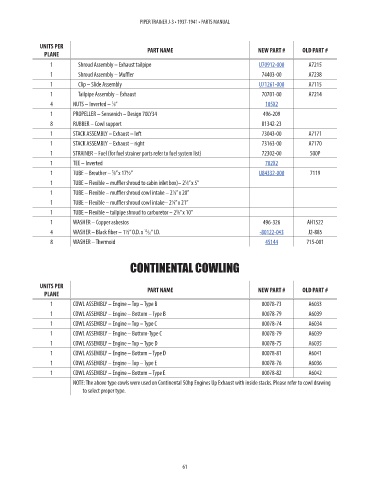

PIPER TRAINER J-3 • 1937-1941 • PARTS MANUAL

UNITS PER PART NAME NEW PART # OLD PART # PRICE
PLANE
1 Shroud Assembly – Exhaust tailpipe U70912-000 A7215 265.31
1 Shroud Assembly – Muffler 74403-00 A7238 NM!
1 Clip – Slide Assembly U71261-000 A7115 66.2

1 Tailpipe Assembly – Exhaust 70701-00 A7214 NM!
4 NUTS – Inverted – ⁄8” 105X2 2.92
1
1 PROPELLER – Sensenich – Design 70LY34 496-209 NM!
8 RUBBER – Cowl support 81342-23 NM!
1 STACK ASSEMBLY – Exhaust – left 73043-00 A7171 NM!
1 STACK ASSEMBLY – Exhaust – right 73163-00 A7170 NM!
1 STRAINER – Fuel (for fuel strainer parts refer to fuel system list) 72302-00 500P NM!
1 TEE – Inverted 702X2 39.12
5
1 TUBE – Breather – ⁄8” x 17½” U84332-000 7119 99.11
1 TUBE – Flexible – muffler shroud to cabin inlet box)– 2 ⁄8” x 5” x
1
1 TUBE – Flexible – muffler shroud cowl intake – 2 ⁄8” x 20” x
1
1 TUBE – Flexible – muffler shroud cowl intake– 2 ⁄8” x 21” x
1
1
1 TUBE – Flexible – tailpipe shroud to carburetor – 2 ⁄8” x 10” x
1 WASHER – Copper asbestos 496-326 AH1522 NM!
4 WASHER – Black fiber – 1½” O.D. x ⁄32” I.D. -80122-043 J2-885 4.51
13
8 WASHER – Thermoid 45144 715-001 24.3

CONTINENTAL COWLING

UNITS PER PART NAME NEW PART # OLD PART # PRICE
PLANE
1 COWL ASSEMBLY – Engine – Top – Type B 00078-73 A6033 NM!
1 COWL ASSEMBLY – Engine – Bottom – Type B 00078-79 A6039 NM!
1 COWL ASSEMBLY – Engine – Top – Type C 00078-74 A6034 NM!
1 COWL ASSEMBLY – Engine – Bottom-Type C 00078-79 A6039 NM!
1 COWL ASSEMBLY – Engine – Top – Type D 00078-75 A6035 NM!
1 COWL ASSEMBLY – Engine – Bottom – Type D 00078-81 A6041 NM!
1 COWL ASSEMBLY – Engine – Top – Type E 00078-76 A6036 NM!
1 COWL ASSEMBLY – Engine – Bottom – Type E 00078-82 A6042 NM!
NOTE: The above type cowls were used on Continental 50hp Engines Up Exhaust with inside stacks. Please refer to cowl drawing
to select proper type.

61
