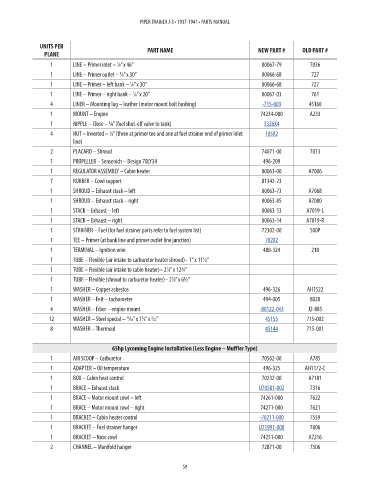

PIPER TRAINER J-3 • 1937-1941 • PARTS MANUAL

UNITS PER PART NAME NEW PART # OLD PART # PRICE
PLANE
1 LINE – Primer inlet – ⁄8” x 46” 00067-79 7036 NM!
1
1 LINE – Primer outlet – ⁄8” x 30” 00066-68 727 NM!
1
1 LINE – Primer – left bank – ⁄8” x 30” 00066-68 727 NM!
1
1
1 LINE – Primer – right bank – ⁄8” x 20” 00067-03 761 NM!
4 LINER – Mounting lug – leather (motor mount bolt bushing) -715-003 45160 3.46
1 MOUNT – Engine 74234-000 A233 NM!
1 NIPPLE – Close – ¼” (fuel shut-off valve to tank) 3326X4 0.97
1
4 NUT – Inverted – ⁄8” (three at primer tee and one at fuel strainer end of primer inlet 105X2 2.92
line)
2 PLACARD – Shroud 74071-00 7013 NM!
1 PROPELLER – Sensenich – Design 70LY34 496-209 NM!
1 REGULATOR ASSEMBLY – Cabin heater 00063-00 A7006 NM!
7 RUBBER – Cowl support 81342-23 NM!
1 SHROUD – Exhaust stack – left 00063-73 A7068 NM!
1 SHROUD – Exhaust stack – right 00063-85 A7080 NM!

1 STACK – Exhaust – left 00063-13 A7019-L NM!
1 STACK – Exhaust – right 00063-14 A7019-R NM!
1 STRAINER – Fuel (for fuel strainer parts refer to fuel system list) 72302-00 500P NM!
1 TEE – Primer (at bank line and primer outlet line junction) 702X2 39.12
1 TERMINAL – Ignition wire 488-324 210 NM!
1 TUBE – Flexible (air intake to carburetor heater shroud)– 1” x 11½”
1 TUBE – Flexible (air intake to cabin heater)– 2 ⁄8” x 12¾”
1
1 TUBE – Flexible (shroud to carburetor heater)– 2 ⁄8” x 6½”
1
1 WASHER – Copper asbestos 496-326 AH1522 NM!
1 WASHER – Felt – tachometer 494-005 8020 NM!
4 WASHER – Fiber – engine mount -80122-043 J2-885 4.51
12 WASHER – Steel special – ⁄64” x 1 ⁄8” x ⁄32” 45155 715-002 1.03
25
3
1
8 WASHER – Thermoid 45144 715-001 24.3
65hp Lycoming Engine Installation (Less Engine – Muffler Type)
1 AIR SCOOP – Carburetor 70562-00 A785 NM!
1 ADAPTER – Oil temperature 496-325 AH1172-C NM!
1 BOX – Cabin heat control 70232-00 A7181 NM!
1 BRACE – Exhaust stack U70581-002 7316 63.57
1 BRACE – Motor mount cowl – left 74261-000 7622 NM!
1 BRACE – Motor mount cowl – right 74271-000 7621 NM!
1 BRACKET – Cabin heater control -70211-000 7559 10.01
1 BRACKET – Fuel strainer hanger U71991-000 7606 77.83
1 BRACKET – Nose cowl 74251-000 A7216 NM!
2 CHANNEL – Manifold hanger 72871-00 7506 NM!

59
