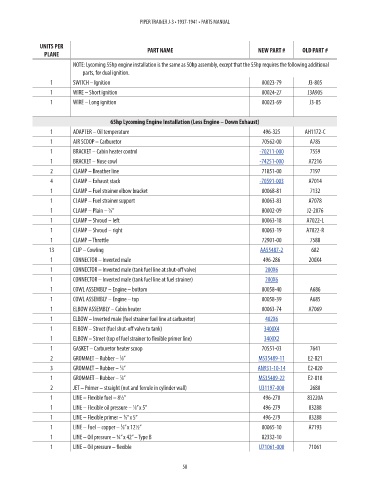

Page 66 - 1937-41 Piper J-3 Trainer Parts Catalog

PIPER TRAINER J-3 • 1937-1941 • PARTS MANUAL

UNITS PER PART NAME NEW PART # OLD PART # PRICE
PLANE
NOTE: Lycoming 55hp engine installation is the same as 50hp assembly, except that the 55hp requires the following additional
parts, for dual ignition.
1 SWITCH – Ignition 00023-79 J3-805 NM!
1 WIRE – Short ignition 00024-27 J3A905 NM!
1 WIRE – Long ignition 00023-69 J3-85 NM!

65hp Lycoming Engine Installation (Less Engine – Down Exhaust)
1 ADAPTER – Oil temperature 496-325 AH1172-C NM!
1 AIR SCOOP – Carburetor 70562-00 A785 NM!
1 BRACKET – Cabin heater control -70211-000 7559 10.01
1 BRACKET – Nose cowl -74251-000 A7216 20.61
2 CLAMP – Breather line 71851-00 7197 NM!
4 CLAMP – Exhaust stack -70591-003 A7014 35.53
1 CLAMP – Fuel strainer elbow bracket 00068-81 7132 NM!
1 CLAMP – Fuel strainer support 00063-83 A7078 NM!

5
1 CLAMP – Plain – ⁄8” 80002-09 J2-2076 NM!
1 CLAMP – Shroud – left 00063-18 A7022-L NM!
1 CLAMP – Shroud – right 00063-19 A7022-R NM!
1 CLAMP – Throttle 72901-00 7588 NM!
13 CLIP – Cowling AA55487-2 682 0.58
1 CONNECTOR – Inverted male 496-286 200X4 NM!
1 CONNECTOR – Inverted male (tank fuel line at shut-off valve) 200X6 2.76
1 CONNECTOR – Inverted male (tank fuel line at fuel strainer) 200X6 2.76
1 COWL ASSEMBLY – Engine – bottom 00058-40 A686 NM!
1 COWL ASSEMBLY – Engine – top 00058-39 A685 NM!
1 ELBOW ASSEMBLY – Cabin heater 00063-74 A7069 NM!
1 ELBOW – Inverted male (fuel strainer fuel line at carburetor) 402X6 7.94
1 ELBOW – Street (fuel shut-off valve to tank) 3400X4 7.4
1 ELBOW – Street (top of fuel strainer to flexible primer line) 3400X2 2.93
1 GASKET – Carburetor heater scoop 70551-03 7641 NM!
2 GROMMET – Rubber – ⁄8” MS35489-11 E2-821 0.6
3
5
3 GROMMET – Rubber – ⁄8” AN931-10-14 E2-820 2
1 GROMMET – Rubber – ⁄8” MS35489-22 E2-818 2.34
7
2 JET – Primer – straight (nut and ferrule in cylinder wall) U31197-000 2680 59.87
1 LINE – Flexible fuel – 8½” 496-278 83220A NM!
1
1 LINE – Flexible oil pressure – ⁄8” x 5” 496-279 83288 NM!
1
1 LINE – Flexible primer – ⁄8” x 5” 496-279 83288 NM!
1 LINE – Fuel – copper – ⁄8” x 12½” 00065-10 A7193 NM!
3
1 LINE – Oil pressure – ¼” x 42” – Type B 82332-10 NM!
1 LINE – Oil pressure – flexible U71061-000 71061 143.43

58
