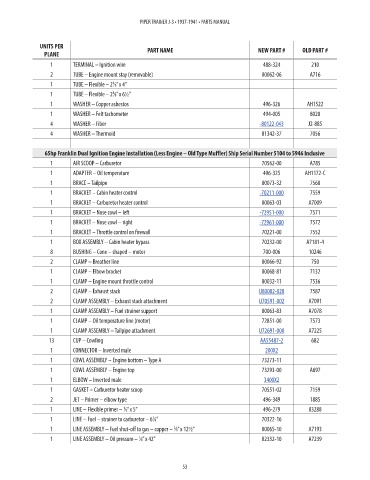

PIPER TRAINER J-3 • 1937-1941 • PARTS MANUAL
UNITS PER PART NAME NEW PART # OLD PART # PRICE
PLANE
1 TERMINAL – Ignition wire 488-324 210 NM!
2 TUBE – Engine mount stay (removable) 00062-06 A716 NM!
1 TUBE – Flexible – 2 ⁄8” x 4”
1
1 TUBE – Flexible – 2 ⁄8” x 6½”
1
1 WASHER – Copper asbestos 496-326 AH1522 NM!
1 WASHER – Felt tachometer 494-005 8020 NM!
4 WASHER – Fiber -80122-043 J2-885 4.51
4 WASHER – Thermoid 81342-37 7056 NM!
65hp Franklin Dual Ignition Engine Installation (Less Engine – Old Type Muffler) Ship Serial Number 5104 to 5946 Inclusive
1 AIR SCOOP – Carburetor 70562-00 A785 NM!
1 ADAPTER – Oil temperature 496-325 AH1172-C NM!
1 BRACE – Tailpipe 00073-32 7560 NM!
1 BRACKET – Cabin heater control -70211-000 7559 10.01
1 BRACKET – Carburetor heater control 00063-03 A7009 NM!
1 BRACKET – Nose cowl – left -72951-000 7571 22.47
1 BRACKET – Nose cowl – right -72961-000 7572 25.55
1 BRACKET – Throttle control on firewall 70221-00 7552 NM!
1 BOX ASSEMBLY – Cabin heater bypass 70232-00 A7181-4 NM!
8 BUSHING – Cone – shaped – motor 700-006 10246 NM!
2 CLAMP – Breather line 00066-92 750 NM!
1 CLAMP – Elbow bracket 00068-81 7132 NM!
1 CLAMP – Engine mount throttle control 80032-11 7536 NM!
2 CLAMP – Exhaust stack U80002-028 7587 25.91
2 CLAMP ASSEMBLY – Exhaust stack attachment U70591-002 A7091 34.61
1 CLAMP ASSEMBLY – Fuel strainer support 00063-83 A7078 NM!
1 CLAMP – Oil temperature line (motor) 72851-00 7573 NM!
1 CLAMP ASSEMBLY – Tailpipe attachment U72691-000 A7225 35.86
13 CUP – Cowling AA55487-2 682 0.58
1 CONNECTOR – Inverted male 200X2 2.11
1 COWL ASSEMBLY – Engine bottom – Type A 73273-11 NM!
1 COWL ASSEMBLY – Engine top 73293-00 A697 NM!
1 ELBOW – Inverted male 3400X2 2.93
1 GASKET – Carburetor heater scoop 70551-02 7159 NM!
2 JET – Primer – elbow type 496-349 1885 NM!
1
1 LINE – Flexible primer – ⁄8” x 5” 496-279 83288 NM!
1 LINE – Fuel – strainer to carburetor – 6 ⁄8” 70322-16 NM!
7
1 LINE ASSEMBLY – Fuel shut-off to gas – copper – ⁄8” x 12½” 00065-10 A7193 NM!
3
1 LINE ASSEMBLY – Oil pressure – ⁄8” x 42” 82332-10 A7239 NM!
1
