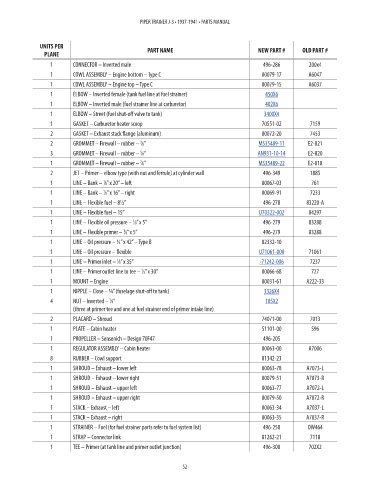

PIPER TRAINER J-3 • 1937-1941 • PARTS MANUAL

UNITS PER PART NAME NEW PART # OLD PART # PRICE
PLANE
1 CONNECTOR – Inverted male 496-286 200x4 NM!
1 COWL ASSEMBLY – Engine bottom – Type C 00079-17 A6047 NM!
1 COWL ASSEMBLY – Engine top – Type C 00079-15 A6037 NM!

1 ELBOW – Inverted female (tank fuel line at fuel strainer) 450X6 6.85
1 ELBOW – Inverted male (fuel strainer line at carburetor) 402X6 7.94
1 ELBOW – Street (fuel shut-off valve to tank) 3400X4 7.4
1 GASKET – Carburetor heater scoop 70551-02 7159 NM!
2 GASKET – Exhaust stack flange (aluminum) 00072-20 7453 NM!
2 GROMMET – Firewall – rubber – ⁄8” MS35489-11 E2-821 0.6
3
3 GROMMET – Firewall – rubber – ⁄8” AN931-10-14 E2-820 2
5
1 GROMMET – Firewall – rubber – ⁄8” MS35489-22 E2-818 2.34
7
2 JET – Primer – elbow type (with nut and ferrule) at cylinder wall 496-349 1885 NM!
1 LINE – Bank – ⁄8” x 20” – left 00067-03 761 NM!
1
1 LINE – Bank – ⁄8” x 16” – right 00069-91 7233 NM!
1
1 LINE – Flexible fuel – 8½” 496-278 83220-A NM!
1 LINE – Flexible fuel – 15” U70322-002 84297 183.92
1 LINE – Flexible oil pressure – ⁄8” x 5” 496-279 83288 NM!
1
1 LINE – Flexible primer – ⁄8” x 5” 496-279 83288 NM!
1
1 LINE – Oil pressure – ¼” x 42” – Type B 82332-10 NM!
1 LINE – Oil pressure – flexible U71061-000 71061 143.43
1 LINE – Primer inlet – ⁄8” x 35” -71242-006 7237 68.58
1
1 LINE – Primer outlet line to tee – ⁄8” x 30” 00066-68 727 NM!
1
1 MOUNT – Engine 00031-61 A222-33 NM!
1 NIPPLE – Close – ¼” (fuselage shut-off to tank) 3326X4 0.97
4 NUT – Inverted – ⁄8” 105X2 2.92
1
(three at primer tee and one at fuel strainer end of primer intake line)
2 PLACARD – Shroud 74071-00 7013 NM!
1 PLATE – Cabin heater 51101-00 596 NM!
1 PROPELLER – Sensenich – Design 70F47 496-205 NM!
1 REGULATOR ASSEMBLY – Cabin heater 00063-00 A7006 NM!
8 RUBBER – Cowl support 81342-23 NM!
1 SHROUD – Exhaust – lower left 00063-78 A7073-L NM!
1 SHROUD – Exhaust – lower right 00079-51 A7073-R NM!
1 SHROUD – Exhaust – upper left 00063-77 A7072-L NM!
1 SHROUD – Exhaust – upper right 00079-50 A7072-R NM!
1 STACK – Exhaust – left 00063-34 A7037-L NM!
1 STACK – Exhaust – right 00063-35 A7037-R NM!
1 STRAINER – Fuel (for fuel strainer parts refer to fuel system list) 496-250 OW464 NM!
1 STRAP – Connector link 81262-21 7118 NM!
1 TEE – Primer (at tank line and primer outlet junction) 496-308 702X2 NM!

52
