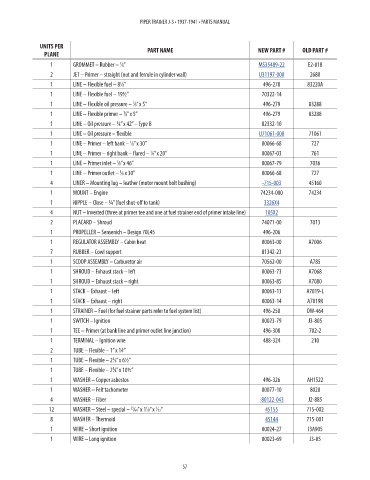

Page 65 - 1937-41 Piper J-3 Trainer Parts Catalog

PIPER TRAINER J-3 • 1937-1941 • PARTS MANUAL

UNITS PER PART NAME NEW PART # OLD PART # PRICE
PLANE
1 GROMMET – Rubber – ⁄8” MS35489-22 E2-818 2.34
7
2 JET – Primer – straight (nut and ferrule in cylinder wall) U31197-000 2680 59.87
1 LINE – Flexible fuel – 8½” 496-278 83220A NM!

1 LINE – Flexible fuel – 19½” 70322-14 NM!
1 LINE – Flexible oil pressure – ⁄8” x 5” 496-279 83288 NM!
1
1 LINE – Flexible primer – ⁄8” x 5” 496-279 83288 NM!
1
1 LINE – Oil pressure – ¼” x 42” – Type B 82332-10 NM!
1 LINE – Oil pressure – flexible U71061-000 71061 143.43
1 LINE – Primer – left bank – ⁄8” x 30” 00066-68 727 NM!
1
1 LINE – Primer – right bank – flared – ⁄8” x 20” 00067-03 761 NM!
1
1 LINE – Primer inlet – ⁄8” x 46” 00067-79 7036 NM!
1
1 LINE – Primer outlet – ⁄8 x 30” 00066-68 727 NM!
1
4 LINER – Mounting lug – leather (motor mount bolt bushing) -715-003 45160 3.46
1 MOUNT – Engine 74234-000 74234 NM!
1 NIPPLE – Close – ¼” (fuel shut-off to tank) 3326X4 0.97
4 NUT – Inverted (three at primer tee and one at fuel strainer end of primer intake line) 105X2 2.92
2 PLACARD – Shroud 74071-00 7013 NM!
1 PROPELLER – Sensenich – Design 70L45 496-206 NM!
1 REGULATOR ASSEMBLY – Cabin heat 00063-00 A7006 NM!
7 RUBBER – Cowl support 81342-23 NM!
1 SCOOP ASSEMBLY – Carburetor air 70562-00 A785 NM!
1 SHROUD – Exhaust stack – left 00063-73 A7068 NM!
1 SHROUD – Exhaust stack – right 00063-85 A7080 NM!
1 STACK – Exhaust – left 00063-13 A7019-L NM!
1 STACK – Exhaust – right 00063-14 A7019R NM!
1 STRAINER – Fuel (for fuel strainer parts refer to fuel system list) 496-250 OW-464 NM!
1 SWITCH – Ignition 00023-79 J3-805 NM!
1 TEE – Primer (at bank line and primer outlet line junction) 496-308 702-2 NM!
1 TERMINAL – Ignition wire 488-324 210 NM!
2 TUBE – Flexible – 1” x 14”
1 TUBE – Flexible – 2 ⁄8” x 6½”
1
1
1 TUBE – Flexible – 2 ⁄8” x 10½”
1 WASHER – Copper asbestos 496-326 AH1522 NM!
1 WASHER – Felt tachometer 00077-10 8020 NM!
4 WASHER – Fiber -80122-043 J2-885 4.51
3
1
12 WASHER – Steel – special – ⁄64” x 1 ⁄8” x ⁄32” 45155 715-002 1.03
25
8 WASHER – Thermoid 45144 715-001 24.3
1 WIRE – Short ignition 00024-27 J3A905 NM!
1 WIRE – Long ignition 00023-69 J3-85 NM!

57
