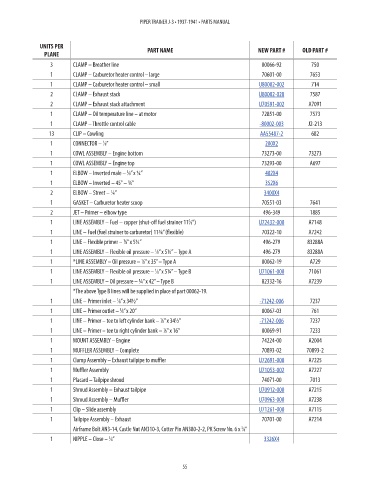

PIPER TRAINER J-3 • 1937-1941 • PARTS MANUAL

UNITS PER PART NAME NEW PART # OLD PART # PRICE
PLANE
3 CLAMP – Breather line 00066-92 750 NM!
1 CLAMP – Carburetor heater control – large 70601-00 7653 NM!
1 CLAMP – Carburetor heater control – small U80002-002 714 34.32

2 CLAMP – Exhaust stack U80002-028 7587 25.91
2 CLAMP – Exhaust stack attachment U70591-002 A7091 34.61
1 CLAMP – Oil temperature line – at motor 72851-00 7573 NM!
1 CLAMP – Throttle control cable -80002-003 J2-213 6.53
13 CLIP – Cowling AA55487-2 682 0.58
1 CONNECTOR – ⁄8” 200X2 2.11
1
1 COWL ASSEMBLY – Engine bottom 73273-00 73273 NM!
1 COWL ASSEMBLY – Engine top 73293-00 A697 NM!
3
1 ELBOW – Inverted male – ⁄8” x ¼” 402X4 5.08
1 ELBOW – Inverted – 45° – ¼” 352X6 7.83
2 ELBOW – Street – ¼” 3400X4 7.4
1 GASKET – Carburetor heater scoop 70551-03 7641 NM!
2 JET – Primer – elbow type 496-349 1885 NM!
1 LINE ASSEMBLY – Fuel – copper (shut-off fuel strainer 11 ⁄8”) U72432-000 A7148 138.28
5
1 LINE – Fuel (fuel strainer to carburetor) 11¾” (flexible) 70322-10 A7242 NM!
1 LINE – Flexible primer – ⁄8” x 5¼” 496-279 83288A NM!
1
1
1 LINE ASSEMBLY – Flexible oil pressure – ⁄8” x 5¼” – Type A 496-279 83288A NM!
1 *LINE ASSEMBLY – Oil pressure – ⁄8” x 35” – Type A 00062-19 A729 NM!
1
1 LINE ASSEMBLY – Flexible oil pressure – ⁄8” x 5¼” – Type B U71061-000 71061 143.43
1
1 LINE ASSEMBLY – Oil pressure – ¼” x 42” – Type B 82332-16 A7239 NM!
*The above Type B lines will be supplied in place of part 00062-19.
1 LINE – Primer inlet – ⁄8” x 34½” -71242-006 7237 68.58
1
1 LINE – Primer outlet – ⁄8” x 20” 00067-03 761 NM!
1
1 LINE – Primer – tee to left cylinder bank – ⁄8” x 34½” -71242-006 7237 68.58
1
1 LINE – Primer – tee to right cylinder bank – ⁄8” x 16” 00069-91 7233 NM!
1
1 MOUNT ASSEMBLY – Engine 74224-00 A2004 NM!
1 MUFFLER ASSEMBLY – Complete 70893-02 70893-2 NM!
1 Clamp Assembly – Exhaust tailpipe to muffler U72691-000 A7225 35.86

1 Muffler Assembly U71053-002 A7227 966.01
1 Placard – Tailpipe shroud 74071-00 7013 NM!
1 Shroud Assembly – Exhaust tailpipe U70912-000 A7215 265.31
1 Shroud Assembly – Muffler U70963-000 A7238 516.58
1 Clip – Slide assembly U71261-000 A7115 66.2
1 Tailpipe Assembly – Exhaust 70701-00 A7214 NM!
Airframe Bolt AN3-14, Castle Nut AN310-3, Cotter Pin AN380-2-2, PK Screw No. 6 x ⁄8”
3
1 NIPPLE – Close – ⁄8” 3326X4 0.97
3
