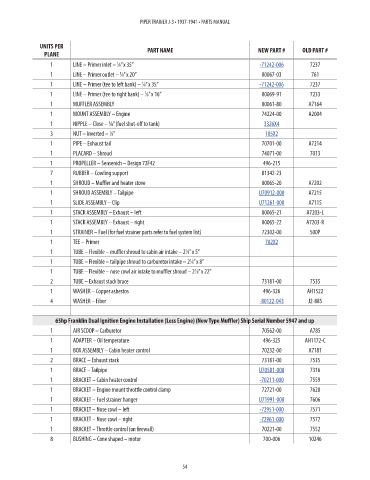

PIPER TRAINER J-3 • 1937-1941 • PARTS MANUAL

UNITS PER PART NAME NEW PART # OLD PART # PRICE
PLANE
1 LINE – Primer inlet – ⁄8” x 35” -71242-006 7237 68.58
1
1 LINE – Primer outlet – ⁄8” x 20” 00067-03 761 NM!
1
1 LINE – Primer (tee to left bank) – ⁄8” x 35” -71242-006 7237 68.58
1
1
1 LINE – Primer (tee to right bank) – ⁄8” x 16” 00069-91 7233 NM!
1 MUFFLER ASSEMBLY 00061-80 A7164 NM!
1 MOUNT ASSEMBLY – Engine 74224-00 A2004 NM!
1 NIPPLE – Close – ¼” (fuel shut-off to tank) 3326X4 0.97
1
3 NUT – Inverted – ⁄8” 105X2 2.92
1 PIPE – Exhaust tail 70701-00 A7214 NM!
1 PLACARD – Shroud 74071-00 7013 NM!
1 PROPELLER – Sensenich – Design 72F42 496-215 NM!
7 RUBBER – Cowling support 81342-23 NM!
1 SHROUD – Muffler and heater stove 00065-20 A7202 NM!
1 SHROUD ASSEMBLY – Tailpipe U70912-000 A7215 265.31
1 SLIDE ASSEMBLY – Clip U71261-000 A7115 66.2
1 STACK ASSEMBLY – Exhaust – left 00065-21 A7203-L NM!
1 STACK ASSEMBLY – Exhaust – right 00065-22 A7203-R NM!
1 STRAINER – Fuel (for fuel strainer parts refer to fuel system list) 72302-00 500P NM!
1 TEE – Primer 702X2 39.12
1 TUBE – Flexible – muffler shroud to cabin air intake – 2 ⁄8” x 5”
1
1 TUBE – Flexible – tailpipe shroud to carburetor intake – 2 ⁄8” x 8”
1
1 TUBE – Flexible – nose cowl air intake to muffler shroud – 2 ⁄8” x 22”
1
2 TUBE – Exhaust stack brace 73181-00 7535 NM!
1 WASHER – Copper asbestos 496-326 AH1522 NM!
4 WASHER – Fiber -80122-043 J2-885 4.51

65hp Franklin Dual Ignition Engine Installation (Less Engine) (New Type Muffler) Ship Serial Number 5947 and up
1 AIR SCOOP – Carburetor 70562-00 A785 NM!
1 ADAPTER – Oil temperature 496-325 AH1172-C NM!
1 BOX ASSEMBLY – Cabin heater control 70232-00 A7181 NM!
2 BRACE – Exhaust stack 73181-00 7535 NM!

1 BRACE – Tailpipe U70581-000 7316 81.12
1 BRACKET – Cabin heater control -70211-000 7559 10.01
1 BRACKET – Engine mount throttle control clamp 72721-00 7620 NM!
1 BRACKET – Fuel strainer hanger U71991-000 7606 77.83
1 BRACKET – Nose cowl – left -72951-000 7571 22.47
1 BRACKET – Nose cowl – right -72961-000 7572 25.55
1 BRACKET – Throttle control (on firewall) 70221-00 7552 NM!
8 BUSHING – Cone shaped – motor 700-006 10246 NM!

54
