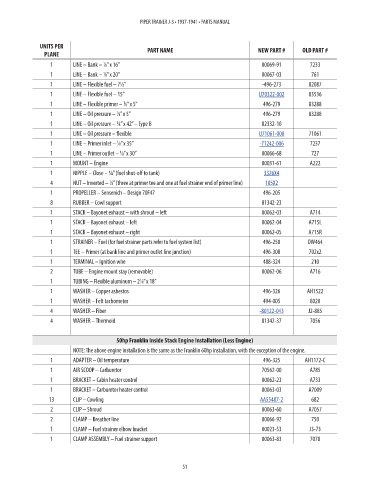

PIPER TRAINER J-3 • 1937-1941 • PARTS MANUAL

UNITS PER PART NAME NEW PART # OLD PART # PRICE
PLANE
1 LINE – Bank – ⁄8” x 16” 00069-91 7233 NM!
1
1 LINE – Bank – ⁄8” x 20” 00067-03 761 NM!
1
1 LINE – Flexible fuel – 7½” -496-273 82087 NM!

1 LINE – Flexible fuel – 15” U70322-002 83536 183.92
1 LINE – Flexible primer – ⁄8” x 5” 496-279 83288 NM!
1
1 LINE – Oil pressure – ⁄8” x 5” 496-279 83288 NM!
1
1 LINE – Oil pressure – ¼” x 42” – Type B 82332-10 NM!
1 LINE – Oil pressure – flexible U71061-000 71061 143.43
1 LINE – Primer inlet – ⁄8” x 35” -71242-006 7237 68.58
1
1 LINE – Primer outlet – ⁄8” x 30” 00066-68 727 NM!
1
1 MOUNT – Engine 00031-61 A222 NM!
1 NIPPLE – Close – ¼” (fuel shut-off to tank) 3326X4 0.97
4 NUT – Inverted – ⁄8” (three at primer tee and one at fuel strainer end of primer line) 105X2 2.92
1
1 PROPELLER – Sensenich – Design 70F47 496-205 NM!
8 RUBBER – Cowl support 81342-23 NM!
1 STACK – Bayonet exhaust – with shroud – left 00062-03 A714 NM!
1 STACK – Bayonet exhaust – left 00062-04 A715L NM!
1 STACK – Bayonet exhaust – right 00062-05 A715R NM!
1 STRAINER – Fuel (for fuel strainer parts refer to fuel system list) 496-250 OW464 NM!
1 TEE – Primer (at bank line and primer outlet line junction) 496-308 702x2 NM!
1 TERMINAL – Ignition wire 488-324 210 NM!
2 TUBE – Engine mount stay (removable) 00062-06 A716 NM!
1 TUBING – Flexible aluminum – 2 ⁄8” x 18”
1
1 WASHER – Copper asbestos 496-326 AH1522 NM!
1 WASHER – Felt tachometer 494-005 8020 NM!
4 WASHER – Fiber -80122-043 J2-885 4.51
4 WASHER – Thermoid 81342-37 7056 NM!

50hp Franklin Inside Stack Engine Installation (Less Engine)
NOTE: The above engine installation is the same as the Franklin 60hp installation, with the exception of the engine.
1 ADAPTER – Oil temperature 496-325 AH1172-C NM!

1 AIR SCOOP – Carburetor 70562-00 A785 NM!
1 BRACKET – Cabin heater control 00062-23 A733 NM!
1 BRACKET – Carburetor heater control 00063-03 A7009 NM!
13 CLIP – Cowling AA55487-2 682 0.58
2 CLIP – Shroud 00063-60 A7057 NM!
2 CLAMP – Breather line 00066-92 750 NM!
1 CLAMP – Fuel strainer elbow bracket 00023-53 J3-73 NM!
1 CLAMP ASSEMBLY – Fuel strainer support 00063-83 7078 NM!
