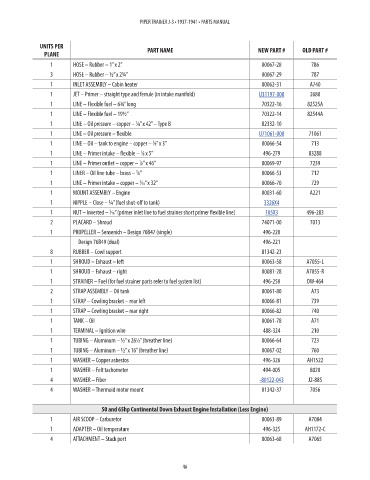

Page 54 - 1937-41 Piper J-3 Trainer Parts Catalog

PIPER TRAINER J-3 • 1937-1941 • PARTS MANUAL

UNITS PER PART NAME NEW PART # OLD PART # PRICE
PLANE
1 HOSE – Rubber – 1” x 2” 00067-28 786 NM!
3 HOSE – Rubber – ½” x 2¼” 00067-29 787 NM!
1 INLET ASSEMBLY – Cabin heater 00062-31 A740 NM!

1 JET – Primer – straight type and ferrule (in intake manifold) U31197-000 2680 59.87
1 LINE – Flexible fuel – 6¾” long 70322-16 82525A NM!
1 LINE – Flexible fuel – 19½” 70322-14 82544A NM!
1 LINE – Oil pressure – copper – ¼” x 42” – Type B 82332-10 NM!
1 LINE – Oil pressure – flexible U71061-000 71061 143.43
1 LINE – Oil – tank to engine – copper – ⁄8” x 3” 00066-54 713 NM!
5
1 LINE – Primer intake – flexible – ⁄8 x 5” 496-279 83288 NM!
1
1 LINE – Primer outlet – copper – ⁄8” x 46” 00069-97 7239 NM!
1
1 LINER – Oil line tube – brass – ⁄8” 00066-53 712 NM!
5
1 LINE – Primer intake – copper – ⁄16” x 32” 00066-70 729 NM!
3
1 MOUNT ASSEMBLY – Engine 00031-60 A221 NM!
1 NIPPLE – Close – ¼” (fuel shut-off to tank) 3326X4 0.97
1 NUT – Inverted – ⁄16” (primer inlet line to fuel strainer short primer flexible line) 105X3 496-283 0.97
3
2 PLACARD – Shroud 74071-00 7013 NM!
1 PROPELLER – Sensenich – Design 76B47 (single) 496-220 NM!
Design 76B49 (dual) 496-221 NM!
8 RUBBER – Cowl support 81342-23 NM!
1 SHROUD – Exhaust – left 00063-58 A7055-L NM!
1 SHROUD – Exhaust – right 00081-28 A7055-R NM!
1 STRAINER – Fuel (for fuel strainer parts refer to fuel system list) 496-250 OW-464 NM!
2 STRAP ASSEMBLY – Oil tank 00061-80 A73 NM!
1 STRAP – Cowling bracket – rear left 00066-81 739 NM!
1 STRAP – Cowling bracket – rear right 00066-82 740 NM!
1 TANK – Oil 00061-78 A71 NM!
1 TERMINAL – Ignition wire 488-324 210 NM!
1 TUBING – Aluminum – ½” x 26½” (breather line) 00066-64 723 NM!
1 TUBING – Aluminum – ½” x 16” (breather line) 00067-02 760 NM!
1 WASHER – Copper asbestos 496-326 AH1522 NM!

1 WASHER – Felt tachometer 494-005 8020 NM!
4 WASHER – Fiber -80122-043 J2-885 4.51
4 WASHER – Thermoid motor mount 81342-37 7056 NM!

50 and 65hp Continental Down Exhaust Engine Installation (Less Engine)
1 AIR SCOOP – Carburetor 00063-89 A7084 NM!
1 ADAPTER – Oil temperature 496-325 AH1172-C NM!
4 ATTACHMENT – Stack port 00063-68 A7065 NM!
