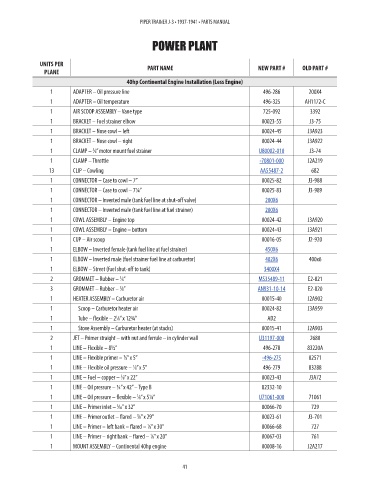

PIPER TRAINER J-3 • 1937-1941 • PARTS MANUAL

POWER PLANT

UNITS PER
PLANE PART NAME NEW PART # OLD PART # PRICE
40hp Continental Engine Installation (Less Engine)
1 ADAPTER – Oil pressure line 496-286 200X4 NM!
1 ADAPTER – Oil temperature 496-325 AH1172-C NM!
1 AIR SCOOP ASSEMBLY – Vane type 725-092 3392 NM!
1 BRACKET – Fuel strainer elbow 00023-55 J3-75 NM!
1 BRACKET – Nose cowl – left 00024-45 J3A923 NM!
1 BRACKET – Nose cowl – right 00024-44 J3A922 NM!
1 CLAMP – ⁄8” motor mount fuel strainer U80002-010 J3-74 12.41
5
1 CLAMP – Throttle -70801-000 J2A219 74.4
13 CLIP – Cowling AA55487-2 682 0.58
1 CONNECTOR – Case to cowl – 7” 00025-82 J3-988 NM!
1 CONNECTOR – Case to cowl – 7¼” 00025-83 J3-989 NM!
1 CONNECTOR – Inverted male (tank fuel line at shut-off valve) 200X6 2.76
1 CONNECTOR – Inverted male (tank fuel line at fuel strainer) 200X6 2.76
1 COWL ASSEMBLY – Engine top 00024-42 J3A920 NM!
1 COWL ASSEMBLY – Engine – bottom 00024-43 J3A921 NM!
1 CUP – Air scoop 00016-05 J2-920 NM!

1 ELBOW – Inverted female (tank fuel line at fuel strainer) 450X6 6.85
1 ELBOW – Inverted male (fuel strainer fuel line at carburetor) 402X6 400x6 7.94
1 ELBOW – Street (fuel shut-off to tank) 3400X4 7.4
2 GROMMET – Rubber – ⁄8” MS35489-11 E2-821 0.6
3
5
3 GROMMET – Rubber – ⁄8” AN931-10-14 E2-820 2
1 HEATER ASSEMBLY – Carburetor air 00015-40 J2A902 NM!
1 Scoop – Carburetor heater air 00024-82 J3A959 NM!
1 Tube – flexible – 2 ⁄8” x 12¾” AD2 NM!
1
1 Stove Assembly – Carburetor heater (at stacks) 00015-41 J2A903 NM!
2 JET – Primer straight – with nut and ferrule – in cylinder wall U31197-000 2680 59.87
1 LINE – Flexible – 8½” 496-278 83220A NM!
1 LINE – Flexible primer – ⁄8” x 5” -496-275 82571 9.76
1
1 LINE – Flexible oil pressure – ⁄8” x 5” 496-279 83288 NM!
1
1 LINE – Fuel – copper – ⁄8” x 22” 00023-43 J3A72 NM!
3
1 LINE – Oil pressure – ¼” x 42” – Type B 82332-10 NM!
1 LINE – Oil pressure – flexible – ⁄8” x 5¼” U71061-000 71061 143.43
1
3
1 LINE – Primer inlet – ⁄16” x 32” 00066-70 729 NM!
1
1 LINE – Primer outlet – flared – ⁄8” x 29” 00023-61 J3-701 NM!
1 LINE – Primer – left bank – flared – ⁄8” x 30” 00066-68 727 NM!
1
1 LINE – Primer – right bank – flared – ⁄8” x 20” 00067-03 761 NM!
1
1 MOUNT ASSEMBLY – Continental 40hp engine 00008-16 J2A217 NM!
