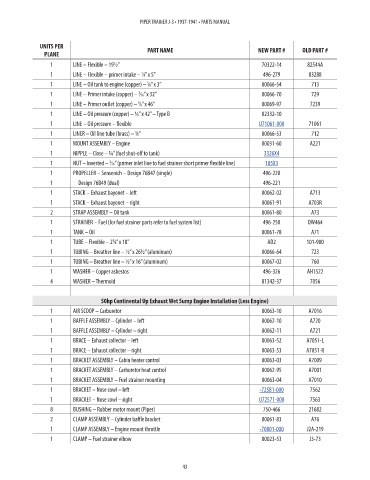

Page 51 - 1937-41 Piper J-3 Trainer Parts Catalog

PIPER TRAINER J-3 • 1937-1941 • PARTS MANUAL

UNITS PER PART NAME NEW PART # OLD PART # PRICE
PLANE
1 LINE – Flexible – 19½” 70322-14 82544A NM!
1 LINE – Flexible – primer intake – ⁄8” x 5” 496-279 83288 NM!
1
1 LINE – Oil tank to engine (copper) – ⁄8” x 3” 00066-54 713 NM!
5
1 LINE – Primer intake (copper) – ⁄16” x 32” 00066-70 729 NM!
3
1 LINE – Primer outlet (copper) – ⁄8” x 46” 00069-97 7239 NM!
1
1 LINE – Oil pressure (copper) – ¼” x 42” – Type B 82332-10 NM!
1 LINE – Oil pressure – flexible U71061-000 71061 143.43
5
1 LINER – Oil line tube (brass) – ⁄8” 00066-53 712 NM!
1 MOUNT ASSEMBLY – Engine 00031-60 A221 NM!
1 NIPPLE – Close – ¼” (fuel shut-off to tank) 3326X4 0.97
1 NUT – Inverted – ⁄16” (primer inlet line to fuel strainer short primer flexible line) 105X3 0.97
3
1 PROPELLER – Sensenich – Design 76B47 (single) 496-220 NM!
1 Design 76B49 (dual) 496-221 NM!
1 STACK – Exhaust bayonet – left 00062-02 A713 NM!
1 STACK – Exhaust bayonet – right 00061-91 A703R NM!
2 STRAP ASSEMBLY – Oil tank 00061-80 A73 NM!
1 STRAINER – Fuel (for fuel strainer parts refer to fuel system list) 496-250 OW464 NM!
1 TANK – Oil 00061-78 A71 NM!
1 TUBE – Flexible – 2 ⁄8” x 18” AD2 101-980 NM!
1
1 TUBING – Breather line – ½” x 26½” (aluminum) 00066-64 723 NM!
1 TUBING – Breather line – ½” x 16” (aluminum) 00067-02 760 NM!
1 WASHER – Copper asbestos 496-326 AH1522 NM!
4 WASHER – Thermoid 81342-37 7056 NM!

50hp Continental Up Exhaust Wet Sump Engine Installation (Less Engine)
1 AIR SCOOP – Carburetor 00063-10 A7016 NM!
1 BAFFLE ASSEMBLY – Cylinder – left 00062-10 A720 NM!
1 BAFFLE ASSEMBLY – Cylinder – right 00062-11 A721 NM!
1 BRACE – Exhaust collector – left 00063-52 A7051-L NM!
1 BRACE – Exhaust collector – right 00063-53 A7051-R NM!
1 BRACKET ASSEMBLY – Cabin heater control 00063-03 A7009 NM!

1 BRACKET ASSEMBLY – Carburetor heat control 00062-95 A7001 NM!
1 BRACKET ASSEMBLY – Fuel strainer mounting 00063-04 A7010 NM!
1 BRACKET – Nose cowl – left -72581-000 7562 142.45
1 BRACKET – Nose cowl – right U72571-000 7563 108.72
8 BUSHING – Rubber motor mount (Piper) 750-466 21682 NM!
2 CLAMP ASSEMBLY – Cylinder baffle bracket 00061-83 A76 NM!
1 CLAMP ASSEMBLY – Engine mount throttle -70801-000 J2A-219 74.4
1 CLAMP – Fuel strainer elbow 00023-53 J3-73 NM!

43
