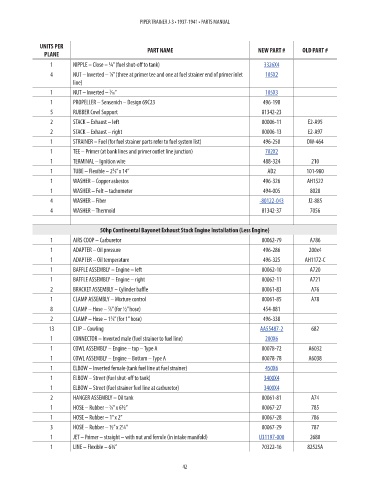

Page 50 - 1937-41 Piper J-3 Trainer Parts Catalog

PIPER TRAINER J-3 • 1937-1941 • PARTS MANUAL

UNITS PER PART NAME NEW PART # OLD PART # PRICE
PLANE
1 NIPPLE – Close – ¼” (fuel shut-off to tank) 3326X4 0.97
4 NUT – Inverted – ⁄8” (three at primer tee and one at fuel strainer end of primer inlet 105X2 2.92
1
line)
3
1 NUT – Inverted – ⁄16” 105X3 0.97
1 PROPELLER – Sensenich – Design 69C23 496-198 NM!
5 RUBBER Cowl Support 81342-23 NM!
2 STACK – Exhaust – left 00006-11 E2-A95 NM!
2 STACK – Exhaust – right 00006-13 E2-A97 NM!
1 STRAINER – Fuel (for fuel strainer parts refer to fuel system list) 496-250 OW-464 NM!
1 TEE – Primer (at bank lines and primer outlet line junction) 702X2 39.12
1 TERMINAL – Ignition wire 488-324 210 NM!
1
1 TUBE – Flexible – 2 ⁄8” x 14” AD2 101-980 NM!
1 WASHER – Copper asbestos 496-326 AH1522 NM!
1 WASHER – Felt – tachometer 494-005 8020 NM!
4 WASHER – Fiber -80122-043 J2-885 4.51

4 WASHER – Thermoid 81342-37 7056 NM!

50hp Continental Bayonet Exhaust Stack Engine Installation (Less Engine)
1 AIRS COOP – Carburetor 00062-79 A786 NM!
1 ADAPTER – Oil pressure 496-286 200x4 NM!
1 ADAPTER – Oil temperature 496-325 AH1172-C NM!
1 BAFFLE ASSEMBLY – Engine – left 00062-10 A720 NM!
1 BAFFLE ASSEMBLY – Engine – right 00062-11 A721 NM!
2 BRACKET ASSEMBLY – Cylinder baffle 00061-83 A76 NM!
1 CLAMP ASSEMBLY – Mixture control 00061-85 A78 NM!
8 CLAMP – Hose – ⁄8” (for ½” hose) 454-881 NM!
7
2 CLAMP – Hose – 1 ⁄8” (for 1” hose) 496-338 NM!
3
13 CLIP – Cowling AA55487-2 682 0.58
1 CONNECTOR – Inverted male (fuel strainer to fuel line) 200X6 2.76
1 COWL ASSEMBLY – Engine – top – Type A 00078-72 A6032 NM!
1 COWL ASSEMBLY – Engine – Bottom – Type A 00078-78 A6038 NM!
1 ELBOW – Inverted female (tank fuel line at fuel strainer) 450X6 6.85
1 ELBOW – Street (fuel shut-off to tank) 3400X4 7.4
1 ELBOW – Street (fuel strainer fuel line at carburetor) 3400X4 7.4
2 HANGER ASSEMBLY – Oil tank 00061-81 A74 NM!
5
1 HOSE – Rubber – ⁄8” x 6½” 00067-27 785 NM!
1 HOSE – Rubber – 1” x 2” 00067-28 786 NM!
3 HOSE – Rubber – ½” x 2¼” 00067-29 787 NM!
1 JET – Primer – straight – with nut and ferrule (in intake manifold) U31197-000 2680 59.87
1 LINE – Flexible – 6¾” 70322-16 82525A NM!

42
