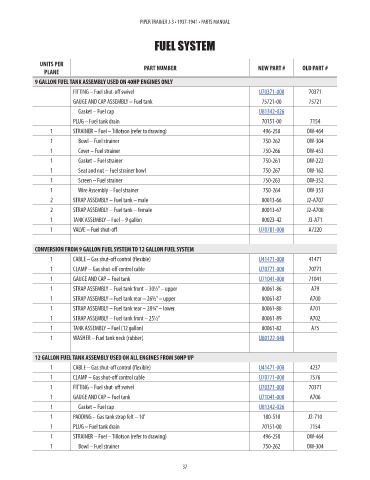

PIPER TRAINER J-3 • 1937-1941 • PARTS MANUAL

FUEL SYSTEM

UNITS PER
PLANE PART NUMBER NEW PART # OLD PART # PRICE
9 GALLON FUEL TANK ASSEMBLY USED ON 40HP ENGINES ONLY
FITTING – Fuel shut-off swivel U70371-000 70371 56.83
GAUGE AND CAP ASSEMBLY – Fuel tank 75721-00 75721 NM!
Gasket – Fuel cap U81342-026 6.49
PLUG – Fuel tank drain 70151-00 7154 NM!
1 STRAINER – Fuel – Tillotson (refer to drawing) 496-250 OW-464 NM!
1 Bowl – Fuel strainer 750-262 OW-304 NM!
1 Cover – Fuel strainer 750-266 OW-453 NM!
1 Gasket – Fuel strainer 750-261 OW-222 NM!
1 Seat and nut – Fuel strainer bowl 750-267 OW-162 NM!
1 Screen – Fuel strainer 750-263 OW-352 NM!
1 Wire Assembly – Fuel strainer 750-264 OW-353 NM!
2 STRAP ASSEMBLY – Fuel tank – male 00013-66 J2-A707 NM!
2 STRAP ASSEMBLY – Fuel tank – female 00013-67 J2-A708 NM!
1 TANK ASSEMBLY – Fuel – 9 gallon 00023-42 J3-A71 NM!
1 VALVE – Fuel shut-off U70781-000 A7220 200.05

CONVERSION FROM 9 GALLON FUEL SYSTEM TO 12 GALLON FUEL SYSTEM

1 CABLE – Gas shut-off control (flexible) U41471-000 41471 322.42
1 CLAMP – Gas shut-off control cable U70771-000 70771 58.61
1 GAUGE AND CAP – Fuel tank U71041-000 71041 187.64
1 STRAP ASSEMBLY – Fuel tank front – 30½” – upper 00061-86 A79 NM!
1 STRAP ASSEMBLY – Fuel tank rear – 26½” – upper 00061-87 A700 NM!
1 STRAP ASSEMBLY – Fuel tank rear – 28¾” – lower 00061-88 A701 NM!
1 STRAP ASSEMBLY – Fuel tank front – 25½” 00061-89 A702 NM!
1 TANK ASSEMBLY – Fuel (12 gallon) 00061-82 A75 NM!
1 WASHER – Fuel tank neck (rubber) U80122-048 8.21

12 GALLON FUEL TANK ASSEMBLY USED ON ALL ENGINES FROM 50HP UP
1 CABLE – Gas shut-off control (flexible) U41471-000 4237 322.42
1 CLAMP – Gas shut-off control cable U70771-000 7576 58.61
1 FITTING – Fuel shut-off swivel U70371-000 70371 56.83
1 GAUGE AND CAP – Fuel tank U71041-000 A706 187.64
1 Gasket – Fuel cap U81342-026 6.49
1 PADDING – Gas tank strap felt – 10’ 180-510 J2-710 NM!
1 PLUG – Fuel tank drain 70151-00 7154 NM!
1 STRAINER – Fuel – Tillotson (refer to drawing) 496-250 OW-464 NM!
1 Bowl – Fuel strainer 750-262 OW-304 NM!
