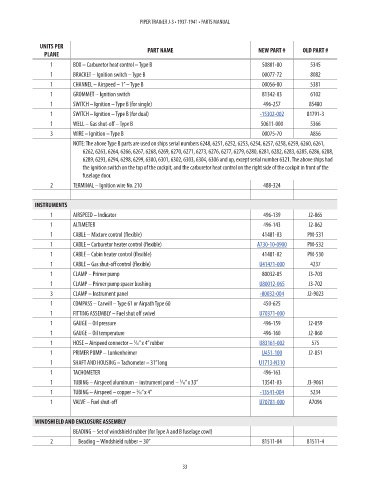

Page 41 - 1937-41 Piper J-3 Trainer Parts Catalog

PIPER TRAINER J-3 • 1937-1941 • PARTS MANUAL

UNITS PER PART NAME NEW PART # OLD PART # PRICE
PLANE
1 BOX – Carburetor heat control – Type B 50881-00 5345 NM!
1 BRACKET – Ignition switch – Type B 00077-72 8082 NM!
1 CHANNEL – Airspeed – 1” – Type B 00056-80 5381 NM!

1 GROMMET – Ignition switch 81342-03 6102 NM!
1 SWITCH – Ignition – Type B (for single) 496-257 85480 NM!
1 SWITCH – Ignition – Type B (for dual) -15302-002 81791-3 565.04
1 WELL – Gas shut-off – Type B 50611-000 5366 NM!
3 WIRE – Ignition – Type B 00075-70 A856 NM!
NOTE: The above Type B parts are used on ships serial numbers 6248, 6251, 6252, 6253, 6254, 6257, 6258, 6259, 6260, 6261,
6262, 6263, 6264, 6266, 6267, 6268, 6269, 6270, 6271, 6273, 6276, 6277, 6279, 6280, 6281, 6282, 6283, 6285, 6286, 6288,
6289, 6293, 6294, 6298, 6299, 6300, 6301, 6302, 6303, 6304, 6306 and up, except serial number 6321. The above ships had
the ignition switch on the top of the cockpit, and the carburetor heat control on the right side of the cockpit in front of the
fuselage door.
2 TERMINAL – Ignition wire No. 210 488-324 NM!

INSTRUMENTS

1 AIRSPEED – Indicator 496-139 J2-865 NM!
1 ALTIMETER 496-143 J2-862 NM!
1 CABLE – Mixture control (flexible) 41481-03 PM-531 NM!
1 CABLE – Carburetor heater control (flexible) A730-10-0900 PM-532 78.05
1 CABLE – Cabin heater control (flexible) 41481-02 PM-530 NM!
1 CABLE – Gas shut-off control (flexible) U41471-000 4237 322.42
1 CLAMP – Primer pump 80032-05 J3-703 NM!
1 CLAMP – Primer pump spacer bushing U80012-065 J3-702 14.77
3 CLAMP – Instrument panel -80032-004 J2-9023 21.34
1 COMPASS – Carwill – Type 61 or Airpath Type 60 450-625 NM!
1 FITTING ASSEMBLY – Fuel shut off swivel U70371-000 56.83
1 GAUGE – Oil pressure 496-159 J2-859 NM!
1 GAUGE – Oil temperature 496-160 J2-860 NM!
1 HOSE – Airspeed connector – ⁄16” x 4” rubber U83161-002 575 5.91
3
1 PRIMER PUMP – Lunkenheimer U451-100 J2-851 419.22
1 SHAFT AND HOUSING – Tachometer – 31” long U1713-N310 151.82
1 TACHOMETER 496-163 NM!
1 TUBING – Airspeed aluminum – instrument panel – ⁄16” x 33” 13541-03 J3-9061 NM!
3
1 TUBING – Airspeed – copper – ⁄16” x 4” -13541-004 5234 13.54
3
1 VALVE – Fuel shut-off U70781-000 A7096 200.05

WINDSHIELD AND ENCLOSURE ASSEMBLY
BEADING – Set of windshield rubber (for Type A and B fuselage cowl) x
2 Beading – Windshield rubber – 30” 81511-04 81511-4 NM!

33
