PIPER TRAINER J-3 • 1937-1941 • PARTS MANUAL

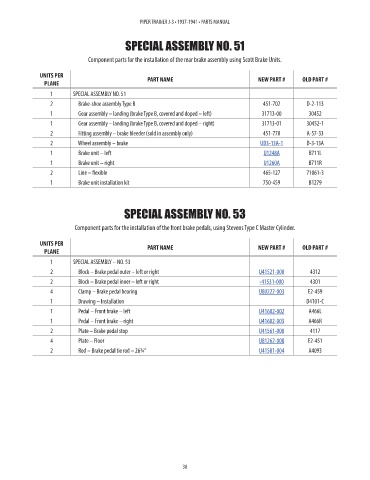

SPECIAL ASSEMBLY NO. 51

Component parts for the installation of the rear brake assembly using Scott Brake Units.

UNITS PER
PLANE PART NAME NEW PART # OLD PART # PRICE
1 SPECIAL ASSEMBLY NO. 51
2 Brake-shoe assembly Type B 451-702 D-2-113 NM!

1 Gear assembly – landing (brake Type B, covered and doped – left) 31713-00 30452 NM!
1 Gear assembly – landing (brake Type B, covered and doped – right) 31713-01 30452-1 NM!
2 Fitting assembly – brake bleeder (sold in assembly only) 451-770 A-57-33 NM!
2 Wheel assembly – brake UD3-13A-1 D-3-13A 1895.3
1 Brake unit – left U1248A B711L 1355.04
1 Brake unit – right U1260A B711R 1355.04
2 Line – flexible 465-127 71061-3 NM!
1 Brake unit installation kit 750-459 B1279 NM!

SPECIAL ASSEMBLY NO. 53

Component parts for the installation of the front brake pedals, using Stevens Type C Master Cylinder.

UNITS PER PART NAME NEW PART # OLD PART # PRICE
PLANE
1 SPECIAL ASSEMBLY – NO. 53 x
2 Block – Brake pedal outer – left or right U41521-000 4312 100.94
2 Block – Brake pedal inner – left or right -41531-000 4301 83.12
4 Clamp – Brake pedal bearing U80222-003 E2-459 19.34
1 Drawing – Installation D4101-C x
1 Pedal – Front brake – left U41602-002 A466L 158.36
1 Pedal – Front brake – right U41602-003 A466R 158.36
2 Plate – Brake pedal stop U41561-000 4117 27.83
4 Plate – Floor U81262-008 E2-451 12.3

2 Rod – Brake pedal tie rod – 26¾” U41581-004 A4093 82.65

30
