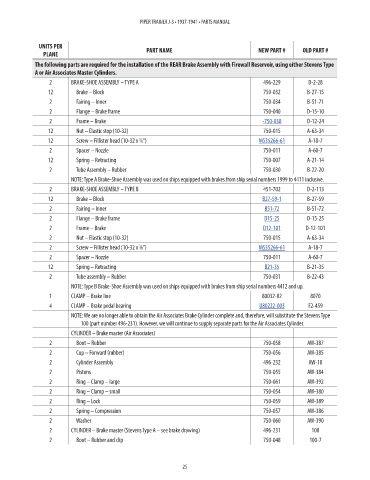

PIPER TRAINER J-3 • 1937-1941 • PARTS MANUAL

UNITS PER PART NAME NEW PART # OLD PART # PRICE
PLANE
The following parts are required for the installation of the REAR Brake Assembly with Firewall Reservoir, using either Stevens Type
A or Air Associates Master Cylinders.
2 BRAKE-SHOE ASSEMBLY – TYPE A 496-229 D-2-28 NM!
12 Brake – Block 750-032 B-27-15 NM!
2 Fairing – Inner 750-034 B-51-71 NM!
2 Flange – Brake frame 750-040 D-15-10 NM!
2 Frame – Brake -750-038 D-12-24 16.25
12 Nut – Elastic stop (10-32) 750-015 A-63-34 NM!
12 Screw – Fillister head (10-32 x ⁄8”) MS35266-61 A-18-7 0.38
3
2 Spacer – Nozzle 750-011 A-60-7 NM!
12 Spring – Retracting 750-007 A-21-14 NM!
2 Tube Assembly – Rubber 750-030 B-22-20 NM!
NOTE: Type A Brake-Shoe Assembly was used on ships equipped with brakes from ship serial numbers 1999 to 4411 inclusive.
2 BRAKE-SHOE ASSEMBLY – TYPE B 451-702 D-2-113 NM!
12 Brake – Block B27-59-1 B-27-59 73.02
2 Fairing – Inner B51-72 B-51-72 107.93
2 Flange – Brake frame D15-25 D-15-25 50.8
2 Frame – Brake D12-101 D-12-101 28.13
2 Nut – Elastic stop (10-32) 750-015 A-63-34 NM!
2 Screw – Fillister head (10-32 x ⁄8”) MS35266-61 A-18-7 0.38
3
2 Spacer – Nozzle 750-011 A-60-7 NM!
12 Spring – Retracting B21-35 B-21-35 9.32
2 Tube assembly – Rubber 750-031 B-22-43 NM!
NOTE: Type B Brake-Shoe Assembly was used on ships equipped with brakes from ship serial numbers 4412 and up.
1 CLAMP – Brake line 80032-02 8070 NM!
4 CLAMP – Brake pedal bearing U80222-003 E2-459 19.34
NOTE: We are no longer able to obtain the Air Associates Brake Cylinder complete and, therefore, will substitute the Stevens Type
100 (part number 496-231). However, we will continue to supply separate parts for the Air Associates Cylinder.
CYLINDER – Brake master (Air Associates)
2 Boot – Rubber 750-058 AW-387 NM!
2 Cup – Forward (rubber) 750-056 AW-385 NM!
2 Cylinder Assembly 496-232 AW-18 NM!
2 Pistons 750-055 AW-384 NM!
2 Ring – Clamp – large 750-061 AW-392 NM!
2 Ring – Clamp – small 750-054 AW-380 NM!
2 Ring – Lock 750-059 AW-389 NM!
2 Spring – Compression 750-057 AW-386 NM!
2 Washer 750-060 AW-390 NM!
2 CYLINDER – Brake master (Stevens Type A – see brake drawing) 496-231 100 NM!
2 Boot – Rubber and clip 750-048 100-7 NM!

25
