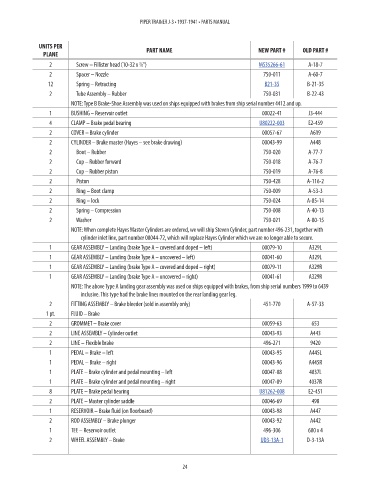

PIPER TRAINER J-3 • 1937-1941 • PARTS MANUAL

UNITS PER PART NAME NEW PART # OLD PART # PRICE
PLANE
2 Screw – Fillister head (10-32 x ⁄8”) MS35266-61 A-18-7 0.38
3
2 Spacer – Nozzle 750-011 A-60-7 NM!
12 Spring – Retracting B21-35 B-21-35 9.32
2 Tube Assembly – Rubber 750-031 B-22-43 NM!
NOTE: Type B Brake-Shoe Assembly was used on ships equipped with brakes from ship serial number 4412 and up.
1 BUSHING – Reservoir outlet 00022-41 J3-444 NM!
4 CLAMP – Brake pedal bearing U80222-003 E2-459 19.34
2 COVER – Brake cylinder 00057-67 A619 NM!
2 CYLINDER – Brake master (Hayes – see brake drawing) 00043-99 A448 NM!
2 Boot – Rubber 750-020 A-77-7 NM!
2 Cup – Rubber forward 750-018 A-76-7 NM!
2 Cup – Rubber piston 750-019 A-76-8 NM!
2 Piston 750-428 A-116-2 NM!
2 Ring – Boot clamp 750-009 A-53-3 NM!
2 Ring – lock 750-024 A-85-14 NM!
2 Spring – Compression 750-008 A-40-13 NM!
2 Washer 750-021 A-80-15 NM!
NOTE: When complete Hayes Master Cylinders are ordered, we will ship Steven Cylinder, part number 496-231, together with
cylinder inlet line, part number 00044-72, which will replace Hayes Cylinder which we are no longer able to secure.
1 GEAR ASSEMBLY – Landing (brake Type A – covered and doped – left) 00079-10 A329L NM!
1 GEAR ASSEMBLY – Landing (brake Type A – uncovered – left) 00041-60 A329L NM!
1 GEAR ASSEMBLY – Landing (brake Type A – covered and doped – right) 00079-11 A329R NM!
1 GEAR ASSEMBLY – Landing (brake Type A – uncovered – right) 00041-61 A329R NM!
NOTE: The above Type A landing gear assembly was used on ships equipped with brakes, from ship serial numbers 1999 to 6439
inclusive. This type had the brake lines mounted on the rear landing gear leg.
2 FITTING ASSEMBLY – Brake bleeder (sold in assembly only) 451-770 A-57-33 NM!
1 pt. FLUID – Brake X
2 GROMMET – Brake cover 00059-63 653 NM!
2 LINE ASSEMBLY – Cylinder outlet 00043-93 A443 NM!
2 LINE – Flexible brake 496-271 9420 NM!
1 PEDAL – Brake – left 00043-95 A445L NM!
1 PEDAL – Brake – right 00043-96 A445R NM!
1 PLATE – Brake cylinder and pedal mounting – left 00047-08 4037L NM!
1 PLATE – Brake cylinder and pedal mounting – right 00047-09 4037R NM!
8 PLATE – Brake pedal bearing U81262-008 E2-451 12.3
2 PLATE – Master cylinder saddle 00046-69 498 NM!
1 RESERVOIR – Brake fluid (on floorboard) 00043-98 A447 NM!
2 ROD ASSEMBLY – Brake plunger 00043-92 A442 NM!
1 TEE – Reservoir outlet 496-306 600 x 4 NM!
2 WHEEL ASSEMBLY – Brake UD3-13A-1 D-3-13A 1895.3

24
